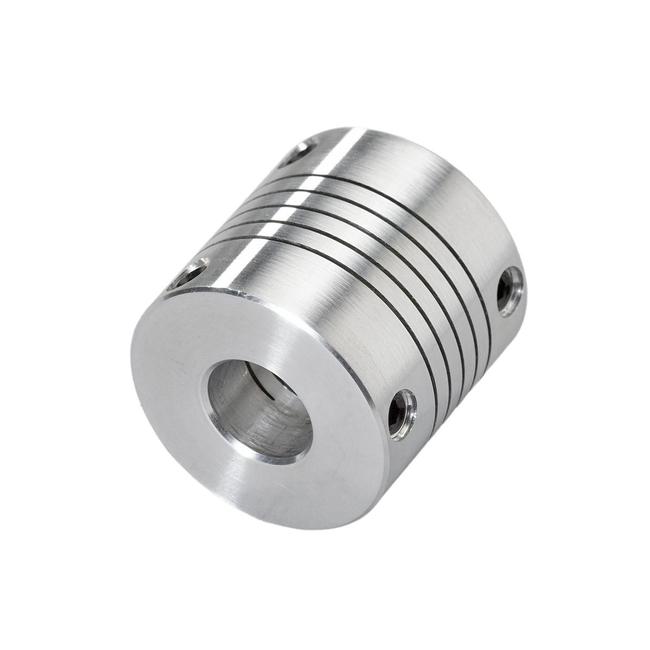

E60028 ifm ⍾ COUPLING 25-6-10-24-SV

Flexible coupling for encoders; Materials : aluminium; External diameter D [mm] : 25; Inside diameter A1 [mm] : 6; Inside diameter A2 [mm] : 10; Length L [mm] : 24; Depth of the clamping hub [mm] : 7; Clamp screw [mm] : M4; Max. revolution, mechanical [U/min] : 8000; Max. axial shaft misalignment [mm] : ± 0,5; Max. radial shaft misalignment [mm] : ± 0,3; Max. angular displacement [°] : ± 4,0

Type

Couplings and bearings

Connection

Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm²

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 68

Weight

27 g

Dimensions

Ø 25 / L = 24 mm
