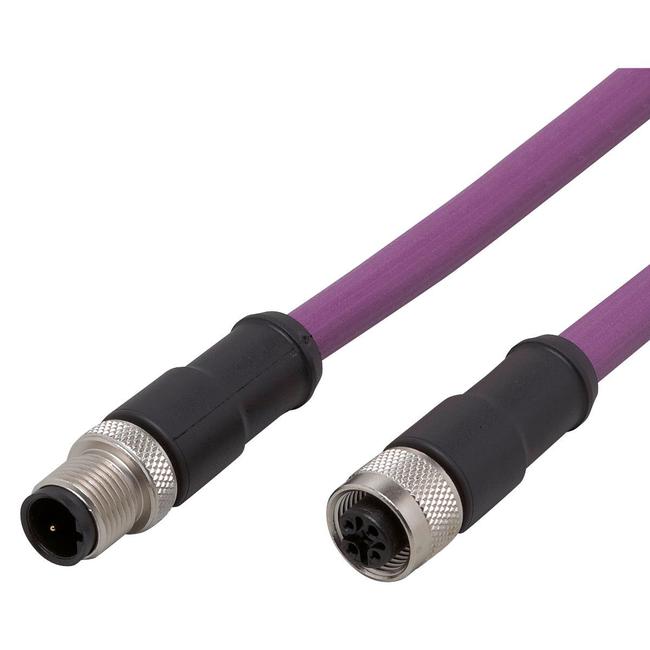

E12316 ifm ⍾ VDOGH050MSS0002C02STG020MSS
Connection cable; Max. current load total [A] : 4; (...40 °C); Ambient temperature [°C] : -40...70; Ambient temperature (moving) [°C] : -20...50; Materials : PUR; Moulded-body material : PUR; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 7.5 x cable diameter | bending radius for fixed installation: min. 10 x cable diameter | travel speed: max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² | bending cycles: > 5 Mio. | max. permissible tensile strength: 50 N/mm² static | 20 N/mm² dynamic; Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected
- Connection
- Cable: 2 m, PUR, Halogen-free, lilac, Ø 8 mm, shielded; 2 x 0.25 mm²
- No. of inputs/outputs
- Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1
- Current consumption
- 100 mA
- Voltage supply
- 20...30; (via flat cable) V
- Display
- switching status: 2 x LED, yellow
- Degree of protection
- IP 67
- Weight
- 160.6 g
- Dimensions
- 14.5 x 14.5 x 48.5 mm
