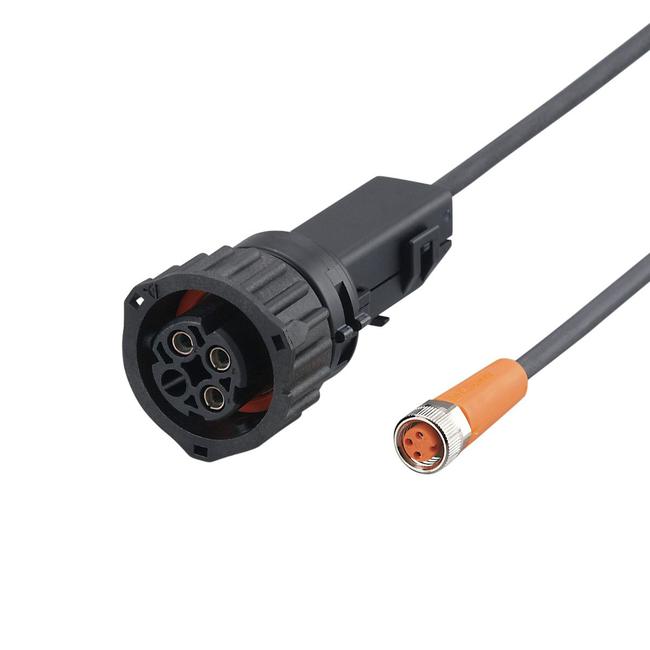

E12245 ifm ⍾ VDOGF030MSS03,7H03DOGR030PLS
Connection cable; Protection class : III; Max. current load total [A] : 3; Ambient temperature [°C] : -25...85; Materials : housing: TPU orange; Sealing: FKM; housing: Hytrel G-4774 black; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Connector: 1 x bayonet, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
- Connection
- Cable: 3.7 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )
- No. of inputs/outputs
- Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1
- Current consumption
- 100 mA
- Voltage supply
- 20...30; (via flat cable) V
- Display
- switching status: 2 x LED, yellow
- Degree of protection
- IP 67; IP 69K
- Weight
- 100.5 g
- Dimensions
- 10 x 10 x 31 mm
