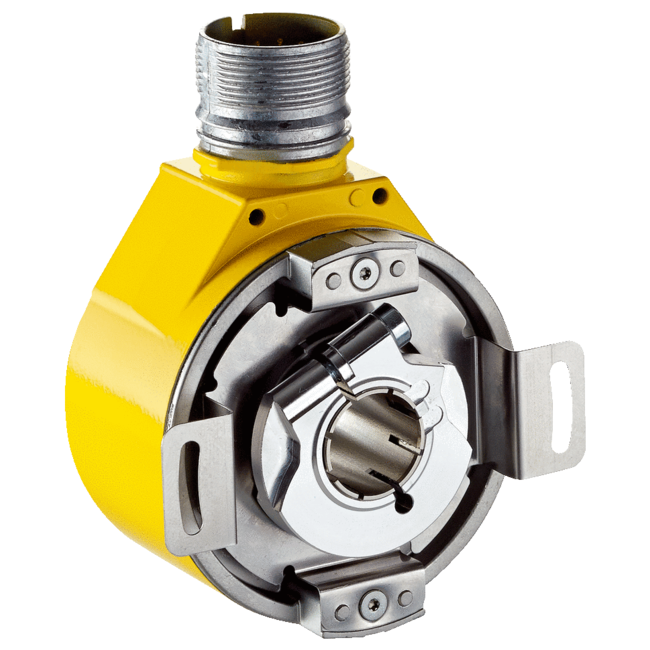

DFS60S-TGOA01024 SICK1069531DFS60STGOA01024

Safety-related parameters: Safety integrity level: SIL2 (IEC 61508), SILCL2 (IEC 62061) 1); Performance level: PL d (EN ISO 13849) 1); Category: 3 (EN ISO 13849); PFHD: Probability of dangerous failure per hour: 1.7 x 10-8 2); TM (mission time): 20 years (EN ISO 13849); Safety-related measuring step: 0.09°, Quadrature analysis; Safety-related accuracy: ± 0.09°; Performance: Sine/cosine periods per revolution: 1,024; Measuring step: 0.3 ″, For interpolation of the sine/cosine signals with, e. g., 12 bits 1); Initialization time: 50 ms 2); Integral non-linearity: Typ. ± 45 ″ (without mechanical tension of the stator coupling); Differential non-linearity: ± 7 ″; Reference signal, number: 1; Reference signal, position: 90°, electronically, gated with Sinus and Cosinus; Electrical data: Communication interface: Incremental; Communication Interface detail: Sin/Cos 1); Connection type: Male connector, M23, 12-pin, radial; Supply voltage: 4.5 V ... 32 V; Maximum output frequency: ≤ 153.6 kHz; Load resistance: ≥ 120 Ω; Power consumption max. without load: ≤ 0.7 W; Power consumption: Without load; Reverse polarity protection: ✔; Protection class: III (according to DIN EN 61140); Short-circuit protection: ✔ 2); Mechanical data: Mechanical design: Through hollow shaft with feather key groove; Shaft diameter: 14 mm; Shaft material: Stainless steel; Flange material: Die-cast zinc; Housing material: Aluminum die cast; Weight: Approx. 0.25 kg 1); Start up torque: ≤ 0.8 Ncm (at 20 °C); Operating torque: ≤ 0.6 Ncm (at 20 °C); Permissible movement static: ± 0.3 mm (radial)± 0.5 mm (axial); Permissible movement dynamic: ± 0.05 mm (radial)± 0.1 mm (axial); Max. angular acceleration: + 500,000 rad/s²; Operating speed: 6,000 min⁻¹; Moment of inertia of the rotor: 56 gcm²; Bearing lifetime: 3.6 x 109 revolutions 2); Ambient data: EMC: According to EN 61000-6-2, EN 61000-6-3 and IEC 61326-3-1; Enclosure rating: IP65 (according to IEC 60529) 1); Permissible relative humidity: 90 %, Condensation not permitted; Operating temperature range: –30 °C ... +95 °C 2); Storage temperature range: –30 °C ... +90 °C, without package; Resistance to shocks: 100 g, 6 ms (according to EN 60068-2-27) 3); Frequency range of resistance to vibrations: 10 g, 10 Hz ... 1,000 Hz (EN 60068-2-6) 4); Classifications: ECl@ss 5.0: 27272501; ECl@ss 5.1.4: 27272501; ECl@ss 6.0: 27272590; ECl@ss 6.2: 27272590; ECl@ss 7.0: 27272590; ECl@ss 8.0: 27272590; ECl@ss 8.1: 27272590; ECl@ss 9.0: 27272590; ECl@ss 10.0: 27272501; ECl@ss 11.0: 27272501; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
