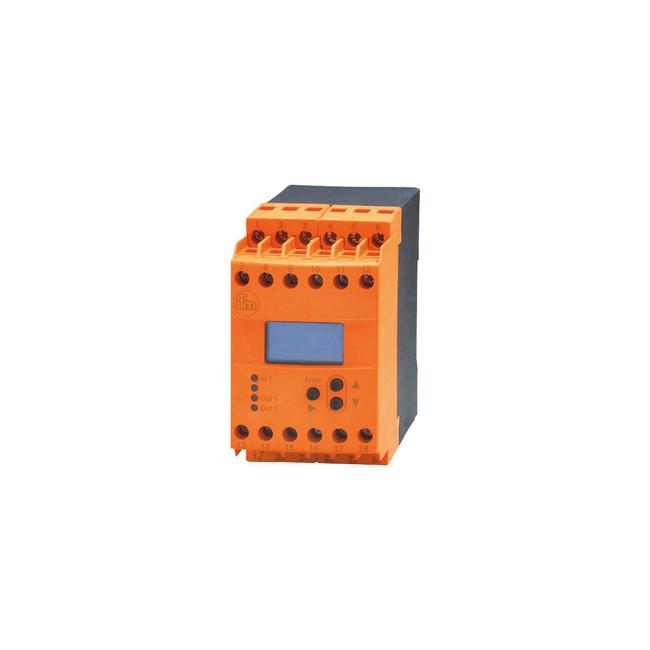

DD2510 ifm ⍾ MONITOR/FR-1 /230VAC

Evaluation unit for speed monitoring; Nominal voltage AC [V] : < 230; Nominal voltage DC [V] : 24; Nominal voltage tolerance [%] : 10; Nominal voltage tolerance 2 [%] : 10; Nominal frequency AC [Hz] : 50...60; Power consumption [W] : 3; Auxiliary energy for sensors DC [V] : 19.6...27.7; (SELV, ≤ 15 mA); Number of relay outputs : 2; Contact rating : 4 A (250 V AC); Number of analogue outputs : 1; Analogue current output [mA] : 4...20; Max. load [Ω] : 500; Setting range Hz [Hz] : 0.1...1000; Setting range [Imp/min] : 1...60000; Ambient temperature [°C] : -40...60; Storage temperature [°C] : -40...85; Max. relative air humidity [%] : 80; (40 °C: 50 %); Protection rating terminals : IP 20; Housing : housing for DIN rail mounting; Materials : plastics; dual-chamber terminals: 2 x ...2.5 mm²

Type

Pulse evaluation systems

Connection

pin headers: 4 x ; Spacing: 5.0 mm

No. of inputs/outputs

Number of analogue outputs: 1; Number of relay outputs: 2

Current consumption

< 150 mA

Voltage supply

20...30; (via flat cable) V

Display

OLED display, 128 x 64 pixels luminous | switching status: LED, green

Degree of protection

IP 50

Weight

380 g

Dimensions

78 x 45 x 124.7 mm
