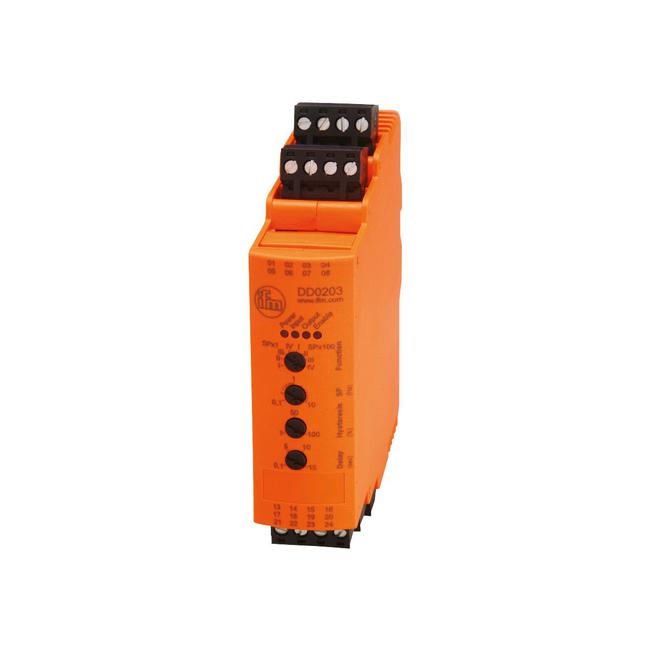

DD0203 ifm ⍾ D200/FR1A 110-240VAC 24VDC

Evaluation unit for speed monitoring; Operating voltage tolerance 2 [%] : > 20; Nominal voltage AC [V] : 110...240; Nominal voltage DC [V] : 27; Nominal voltage tolerance [%] : > 20; Nominal voltage tolerance 2 [%] : 20...10; Nominal frequency AC [Hz] : 50...60; Insulation rating [V] : 9; Max. power consumption AC [W] : 6; Max. power consumption DC [W] : 4; Auxiliary energy for sensors DC [V] : 18.5...30; (SELV, ≤ 100 mA); Number of digital outputs : 1; Number of relay outputs : 1; Contact rating : 4 A (240 V AC, 24 V DC); (ohmic resistance); Short-circuit proof : yes; Setting range Hz [Hz] : 0.1...1000; Hysteresis [% of Sr] : 1...100; Start-up delay [s] : 0.1...15; Adjustment of the switch point : potentiometer; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...70; Max. relative air humidity [%] : 80; (40 °C: 50 % non condensing); Max. height above sea level [m] : 2000; Protection rating terminals : IP 20; Degree of soiling : 2; (≤ 240 V AC); Housing : housing for DIN rail mounting; Type of mounting : rail; (TH35 EN 60715); Materials : plastics: PC-GF20; Items supplied : connector: 5 x 4-pole, with screw connection, E40173

Connection

pin headers: 4 x ; Spacing: 5.0 mm

No. of inputs/outputs

Number of digital outputs: 1; Number of relay outputs: 1

Current consumption

< 150 mA

Voltage supply

20...30; (via flat cable) V

Display

voltage supply: 1 x LED, green | input signal: 1 x LED, yellow | Output: 1 x LED, green | enable signal: 1 x LED, yellow

Degree of protection

IP 20

Weight

242 g

Dimensions

93 x 25.4 x 109.1 mm
