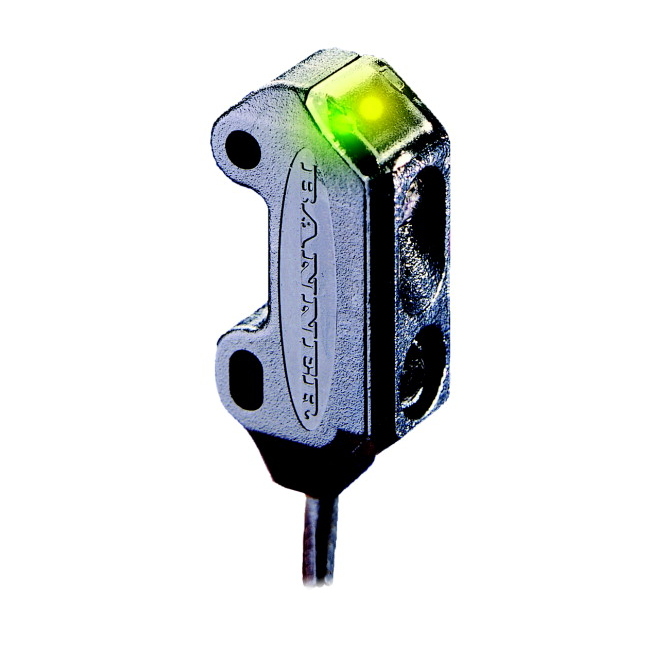

VS1AN5CV20 BANNER ⍾ 56496

VS1 Series Mini Self-Contained Convergent-Mode Sensor; VS1 Series: Convergent Focal Point: 20 mm; Input: 12 to 24V dc Output: Light Operate - NPN2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 20; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 630; Repeatability (µs) : 250; Number of Pins : 3; NEMA Rating : NEMA 3; Max Op. Relative Humidity [%] : 80% @ 50°C

Type

VS1

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP54
