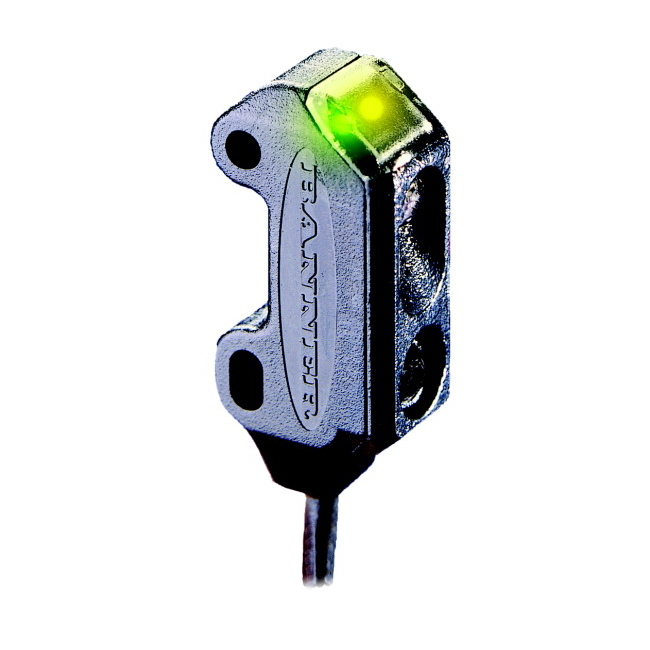

VS1AP5CV10Q BANNER ⍾ 59177

VS1 Series Mini Self-Contained Convergent-Mode Sensor; VS1 Series: Convergent Focal Point: 10 mm; Input: 12 to 24V dc Output: Light Operate - PNPPico-Style Pigtail QD Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 10; Outputs : PNP; Quick Disconnect Type : M8 (Pico); Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 630; Repeatability (µs) : 250; Number of Pins : 3; NEMA Rating : NEMA 3; Max Op. Relative Humidity [%] : 80% @ 50°C; Feature: Quick Disconnect : Yes

Type

VS1

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP54
