S30RW3LPQ3 BANNER ⍾ 36900

This product has been marked as discontinued. Please ask for availability or replacement.

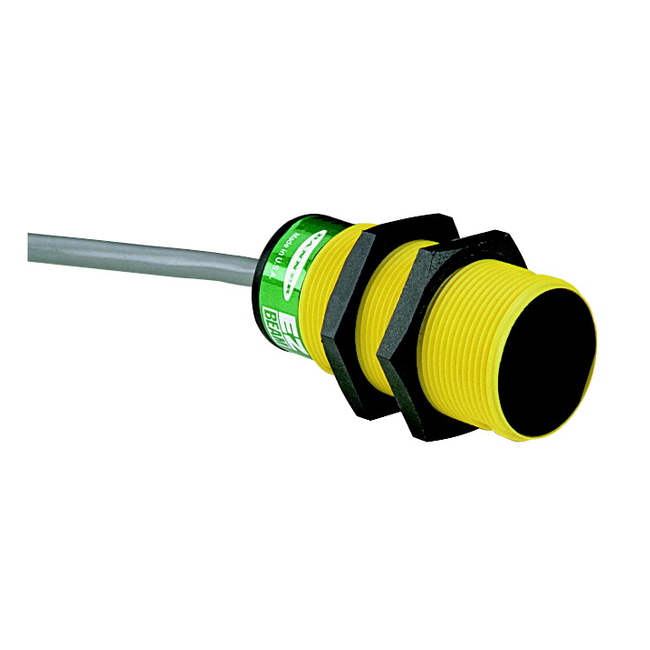

S30 Series 30mm Plastic Threaded Barrel Sensor; EZ-BEAM S30 Series Polarized Retro Range: 6 m; Input: 20-250V ac Output: Light Operate QD uses Turck cordset: WAKW4.5T-2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 6000; Outputs : Solid-State AC Switch; Quick Disconnect Type : M12 (Euro); Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 5; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

S30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

AC

Power supply

20-250 V ac

Indicator

LEDs

Degree of protection

IP69
