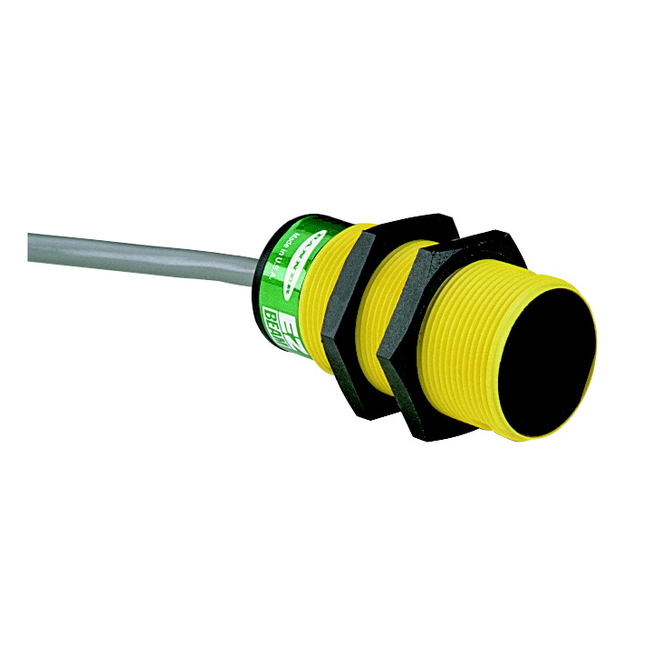

S30RW3LPQ1 BANNER ⍾ 33375

S30 Series 30mm Plastic Threaded Barrel Sensor; EZ-BEAM S30 Series: Polarized Retro Range: 6 m; Input: 20-250 V ac Output: SPST Solid-state Dark Operate Micro 4-pin Integral QD; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 6000; Outputs : Solid-State AC Switch; Quick Disconnect Type : 1/2 in. (Micro); Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

S30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

AC

Power supply

20-250 V ac

Indicator

LEDs

Degree of protection

IP69
