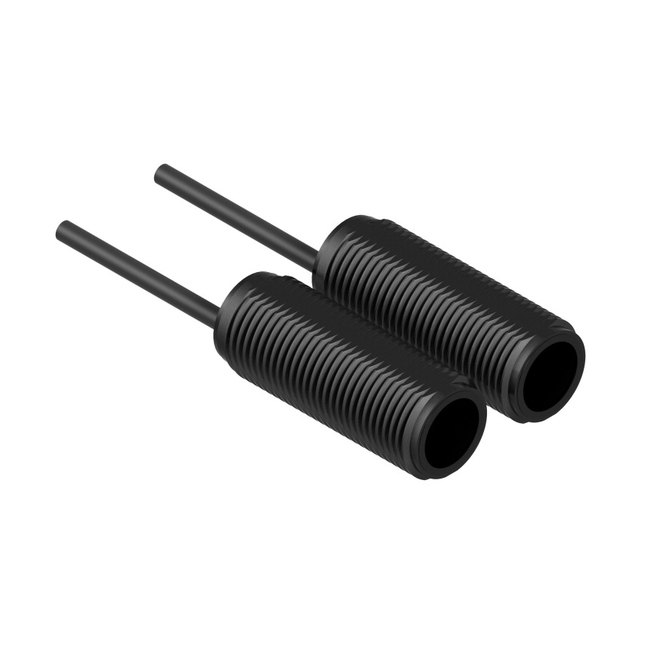

S12-2NAEL-2M BANNER ⍾ 87409
S12-2 Series Wide Beam Plastic Barrel-Mount Sensor; S12-2 Series: Emitter; Long Range Range: 20 m; Input: 10-30 V dc Outputs: none Connection: 2-conductor 2 m PVC cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 50; Output response time (ms) : 11; Sensing Beam Wavelength : 880; Repeatability (µs) : 1500; Number of Pins : 2; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 12; Opposed Mode Emitter/Receiver : Emitter; Feature: Encapsulated : Yes
- Lens material
- Polycarbonate
- Sensing beam
- Infrared LED
- Typical response time
- 1 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
