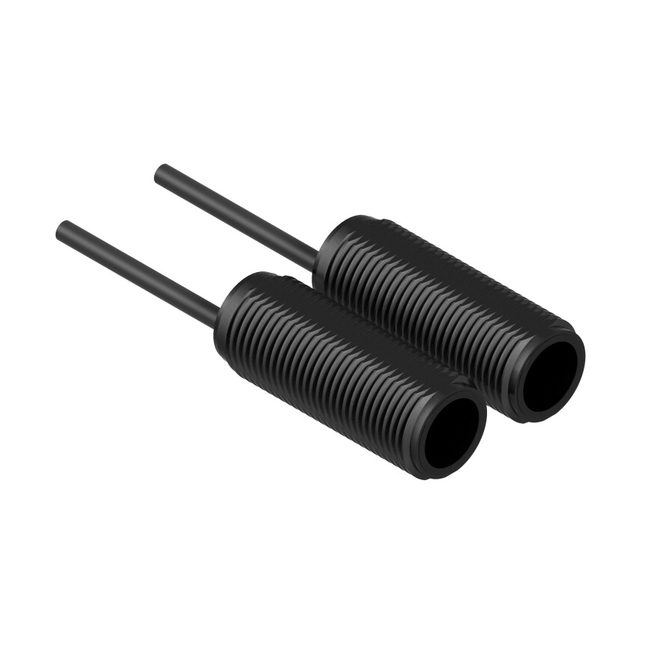

S12-2APRL-Q3 BANNER ⍾ 87417

S12-2 Series Wide Beam Plastic Barrel-Mount Sensor; S12-2 Series: Receiver; Long Range Range: 20 m; Input: 10-30 V dc Outputs: 1 L.O. PNP;Connection: Pico M8 3-pin 150 mm PVC Pigtail; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 20; Quick Disconnect Type : M8 (Pico); Operation : Light Operate; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 50; Output response time (ms) : 11; Sensing Beam Wavelength : 880; Repeatability (µs) : 1500; Number of Pins : 3; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 12; Opposed Mode Emitter/Receiver : Receiver; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

S12-2

Lens material

Polycarbonate

Sensing beam

Infrared LED

Typical response time

1 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
