QMH26ENXLPCQ7 BANNER ⍾ 28777

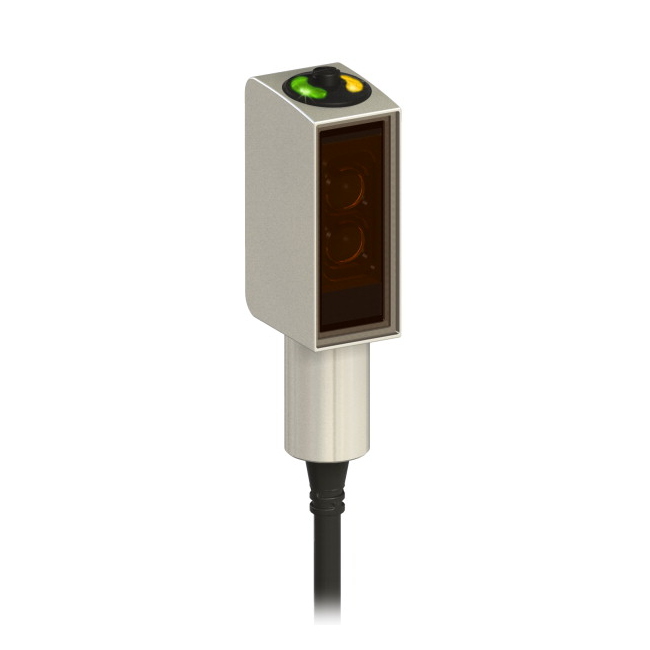

QMH26 Series Hygienic Washdown Sensor; QMH26 Hygienic Series: Low Contrast Coaxial Polarized Retro Range: 2.6 m; Input: 10 - 30 Vdc Output: Solid State NPN with teach Input M8 Pico-Style Quick Disconnect; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized (Coaxial); Housing Style : Rectangular; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Max Sensing Distance (mm) : 2600; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -30; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 620; Repeatability (µs) : 150; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Teach Button; Feature: Washdown Rated : Yes; Feature: Clear Object Detection : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes
- Lens material
- PMMA
- Sensing beam
- Visible Red LED
- Connection
- Integral QD
- Typical response time
- 300 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP69
