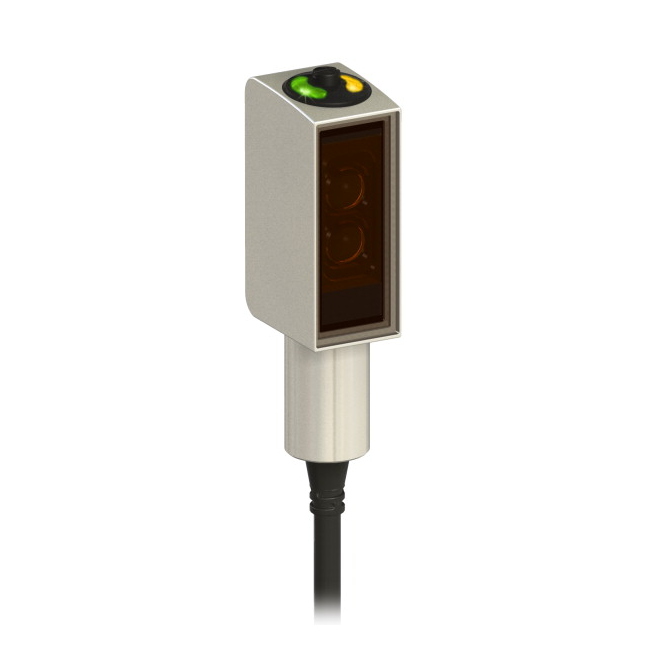

QMH26VNAF200Q7 BANNER ⍾ 28804

QMH26 Series Hygienic Washdown Sensor; QMH26 Hygienic Series: Adjustable BGS (Small Red LED)Range: 200 mm; Input: 10 - 30 Vdc Output: Complementery Solid State NPNM8 Pico-Style Quick Disconnect; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Stainless Steel; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 200; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -30; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Sensing Beam Wavelength : 660; Repeatability (µs) : 150; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Screw Adjustment; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes

Type

QMH26

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

300 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP69
