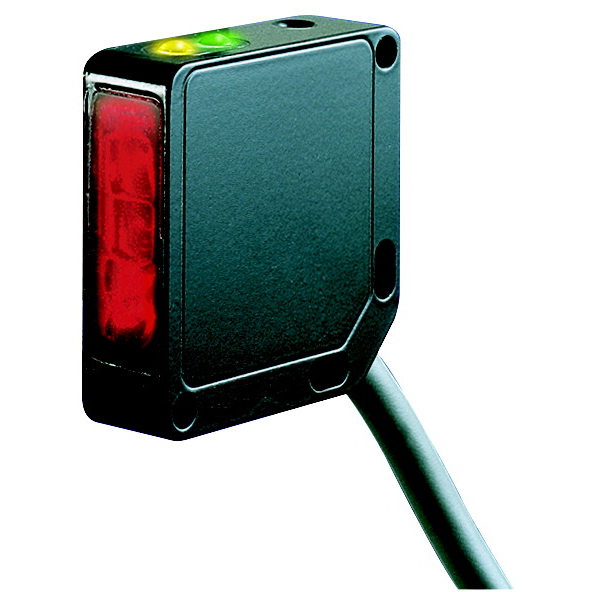

QM42VN6LP BANNER ⍾ 44902

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QM42 Series: Polarized Retro Range: 3 m; Input: 10-30V dc Output: SPDT (Complementary) NPN2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 3000; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 1; Sensing Beam Wavelength : 660; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer

Type

QM42 & QMT42

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
