QM42VN6DQ BANNER ⍾ 44340

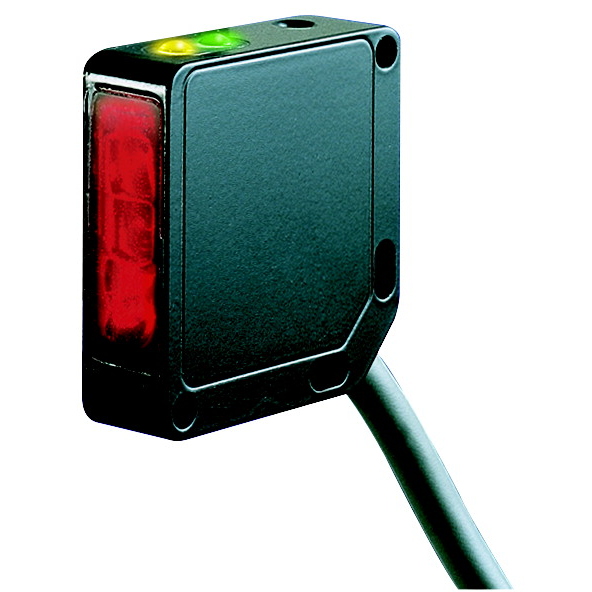

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QM42 Series: Diffuse Range: 400 mm; Input: 10-30 V dc Output: SPDT (Complementary) NPNEuro M12 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 400; Outputs : NPN; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 1; Sensing Beam Wavelength : 880; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Feature: Quick Disconnect : Yes
- Lens material
- Acrylic
- Sensing beam
- Infrared LED
- Connection
- Integral QD
- Typical response time
- 100 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
