Q25SP6REQ BANNER ⍾ 37095

This product has been marked as discontinued. Please ask for availability or replacement.

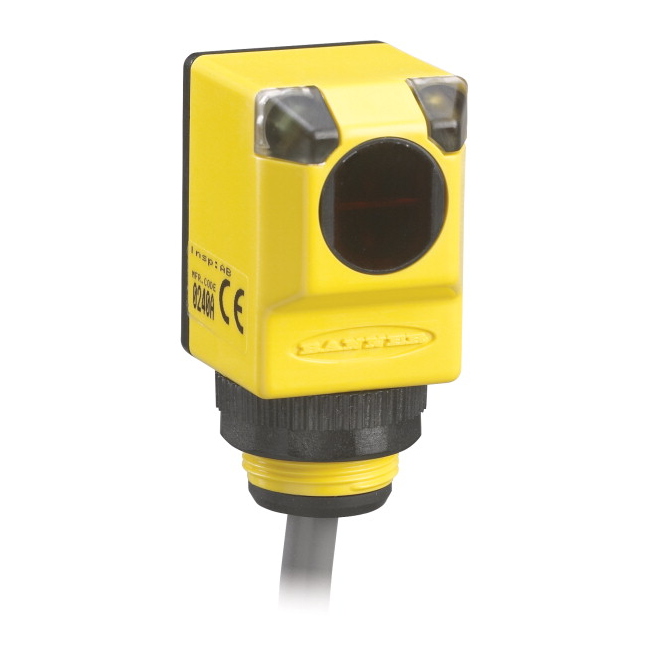

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series Right-Angle Receiver/Emitter Range: 20 m; Input: 10-30 V dc Output: Receiver: PNPEuro M12 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter/Receiver Pair; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 20000; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3 ON/1.5 OFF; Repeatability (µs) : 375; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Pair; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Type

Q25

Lens material

Polycarbonate

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP69
