Q256EQ BANNER31935

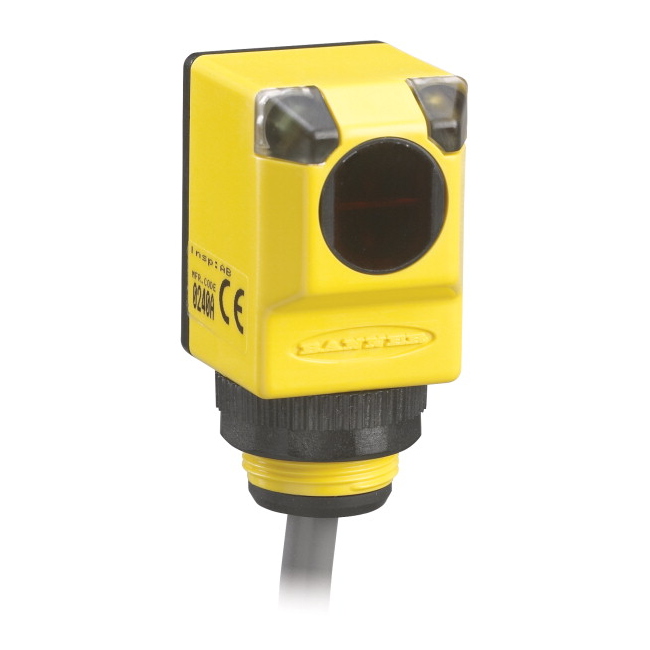

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series: Emitter Range: 20 m; Input: 10-30V dc Output: Not applicable - No outputs Quick-Disconnect Connector; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3 ON/1.5 OFF; Repeatability (µs) : 375; Number of Pins : 2; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Health/ Marginal Signal Output : Yes

Lens material
Polycarbonate
Sensing beam
Infrared LED
Connection
Cable
Typical response time
100 ms
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP69
