Q25SP6FF50Q BANNER ⍾ 31939

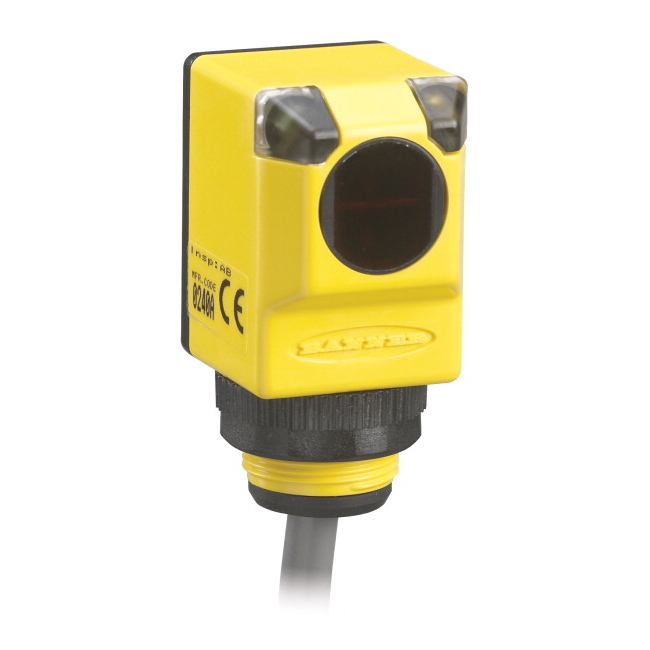

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series: Fixed Field Range: 50 mm; Input: 10-30 V dc Output: Complementary PNPEuro M12 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 50; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Type

Q25

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP69
