Q25AW3FF100Q1 BANNER ⍾ 31922

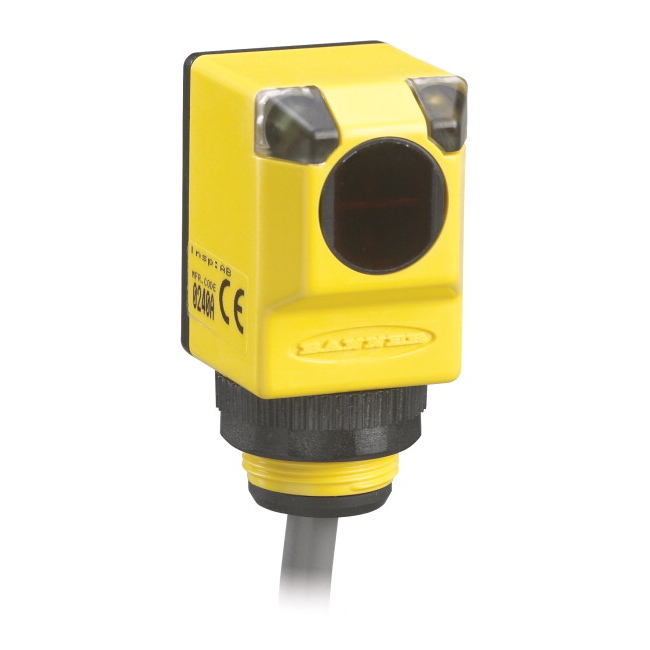

Q25 Series Right-Angle Base-Mount Rectangle Sensor; EZ-BEAM Q25 Series: Fixed Field Range: 100 mm; Input: 20-250 V ac Output: SPST Solid-state Light Operate Micro 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 100; Outputs : Solid-State AC Switch; Quick Disconnect Type : 1/2 in. (Micro); Min Op. Temp. (°C) : -40; Operation : Light Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes
- Lens material
- Acrylic
- Sensing beam
- Infrared LED
- Connection
- Integral QD
- Typical response time
- 100 ms
- Power supply type
- AC
- Power supply
- 20-250 V ac
- Indicator
- LEDs
- Degree of protection
- IP69
