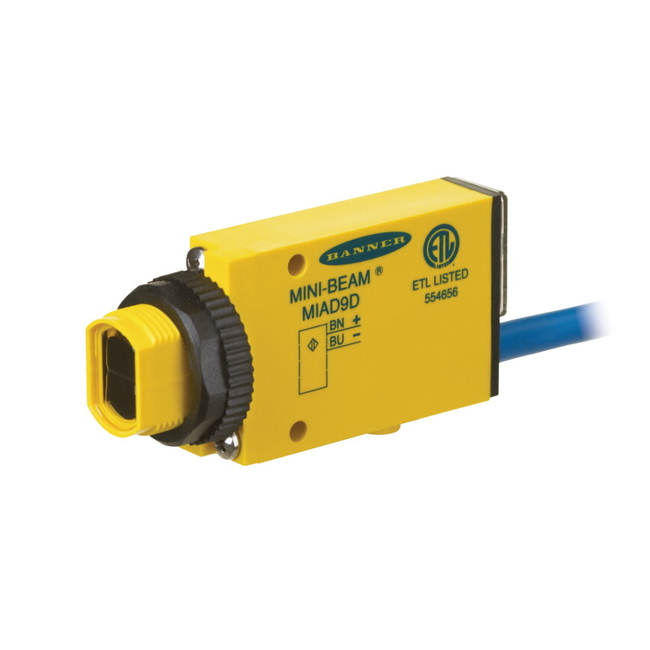

MIAD9CV2 W/30 BANNER ⍾ 38021
Mini-Beam Series Industry Standard Sensor; MINI-BEAM NAMUR: Convergent Focal Point: 43 mm; Input: 5-15V dc Output: NAMUR9 m (30 ft) cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 43; Outputs : Constant Current; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 5; Special Feature: Intrinsically Safe : Yes; Number of Pins : 2; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Feature: Encapsulated : Yes; Feature: Hazardous Area : Yes
- Lens material
- Acrylic
- Sensing beam
- Visible Red LED
- Connection
- Cable
- Power supply type
- DC
- Power supply
- 5-15 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
