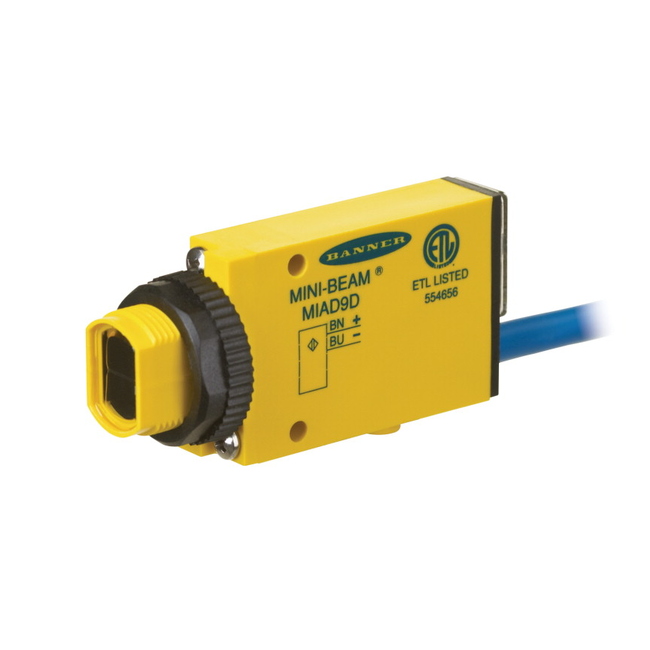

MI9E BANNER ⍾ 40141

Mini-Beam Series Industry Standard Sensor; MINI-BEAM NAMUR: Emitter Range: 6 m; Input: 5-15V dc Output: Not applicable - No outputs NAMUR2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 6000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Special Feature: Intrinsically Safe : Yes; Number of Pins : 2; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Encapsulated : Yes; Feature: Hazardous Area : Yes

Type

MINI-BEAM

Sensing beam

Infrared LED

Lens material

Acrylic

Connection

Cable

Power supply

5-15 V dc

Power supply type

DC

Degree of protection

IP67
