M18SP6FF25 W/30 BANNER ⍾ 58431
This product has been marked as discontinued. Please ask for availability or replacement.

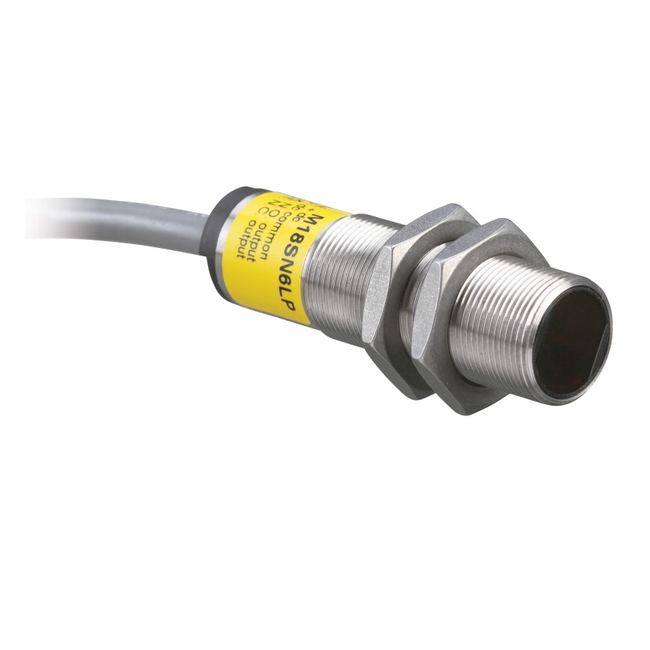

M18 Series 18mm Metal Barrel-Mount Sensor; EZ-BEAM M18 Series: Fixed Field Range: 25 mm; Input: 10-30 V dc Complementary PNP9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Max Sensing Distance (mm) : 25; Outputs : PNP; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Health/ Marginal Signal Output : Yes
- Lens material
- Acrylic
- Sensing beam
- Infrared LED
- Connection
- Cable
- Typical response time
- 100 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP69
