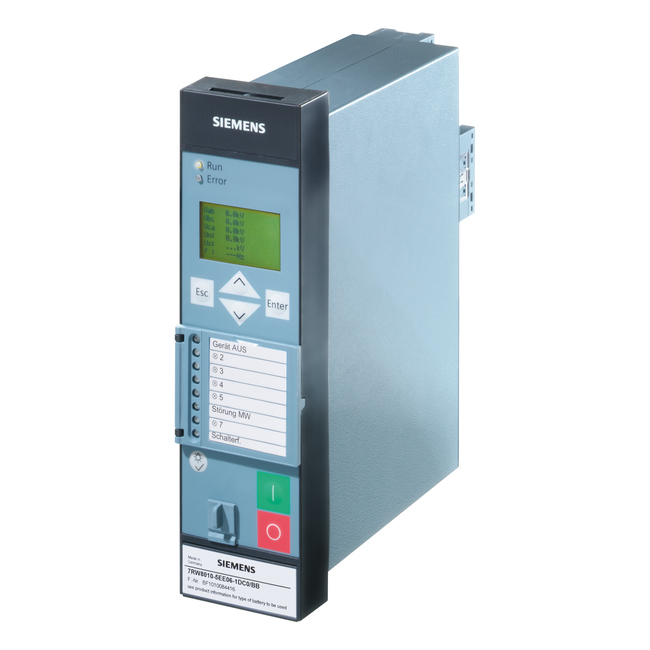

SIEMENS 7RW8010-5EB90-1DB0 L0A

7RW8010-5EB90-1DB0 L0A SIEMENS ⍾ 7RW80105EB901DB0L0A

Voltage and frequency relay housing 1/6 19", 3 x U, 3 BI, 5 BO, (2 changeover contacts), 1 live contact . auxiliary voltage: 60/110/125/220/250 V DC, 115 V AC, 230 V AC installation enclosure, screw terminals region world, IEC/ANSI language English (language can be changed) front membrane standard system interface port B (device bottom side, rear) PROFIBUS DP slave, electr. RS485 without system interf., port A measurement: with fault recording and min./max. values of voltages functionality: voltage and frequency protection, load restoration. overvoltage/undervoltage (27/59). residual voltage (64/59N). underfrequency/overfrequency (81U/O). load restoration. rotating field direction (47). trip circuit supervision (74TC), lock out (86), parameter set switchover, supervision functions, circuit-breaker control, flexible protection functions (characteristic key values from voltage), frequency change, voltage change protection .

Customs tariff number
85363010
Expected origin
DE
Weight
5.600 kg
