7ML5651-0CB00-0JA0 SIEMENS ⍾ 7ML56510CB000JA0

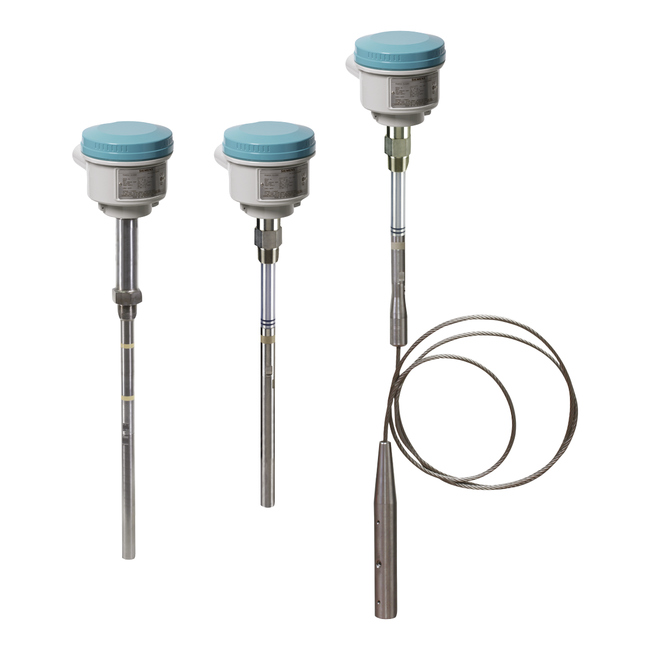

Pointek CLS300 - Standard - Cable Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: 1 1/4" NPT (Taper), ANSI/ASME B1.20.1 Probe Length: (Lengths from flange face) Extended cable, 6000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM Probe Material: Bare 316L stainless steel cable, PEEK isolators and 316L stainless steel cable weight Approvals: General Purpose (CE, C-TICK) Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)

Type

Capacitance transmitters

Alternative product id

7ML56510CB000JA0

Customs tariff number

90261029

Expected origin

DE

Weight

2.000 kg
