7ML5651-0CA10-0HB0 SIEMENS ⍾ 7ML56510CA100HB0

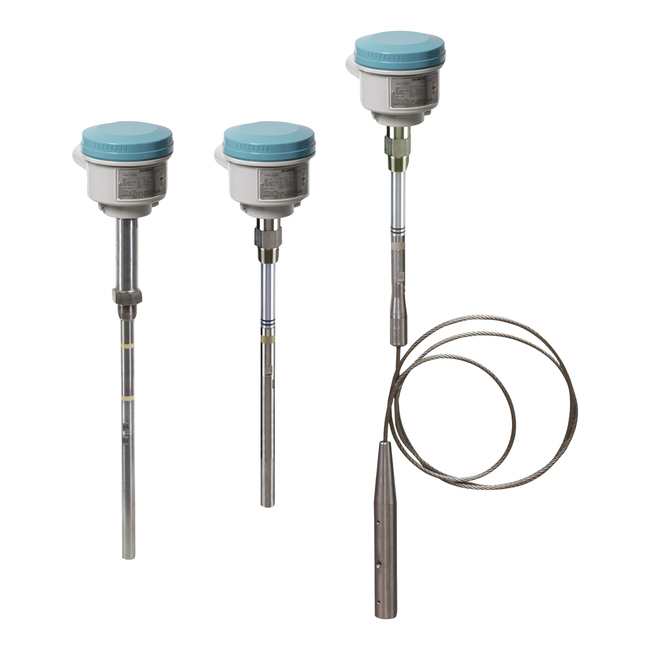

Pointek CLS300 - Standard - Cable Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: 1 1/4" NPT (Taper), ANSI/ASME B1.20.1 Probe Length: (Lengths from flange face) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: With thermal isolator (for process connection temperatures over +85 C (+185 F)) Wetted Seals: FKM Probe Material: Bare 316L stainless steel cable, PEEK isolators and 316L stainless steel cable weight Approvals: General Purpose (CSA, FM) Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 Active Shield Length: Standard length - (125 mm threaded, 105 mm flanged)

Type

Capacitance transmitters

Alternative product id

7ML56510CA100HB0

Customs tariff number

90261029

Expected origin

CA

Weight

2.000 kg
