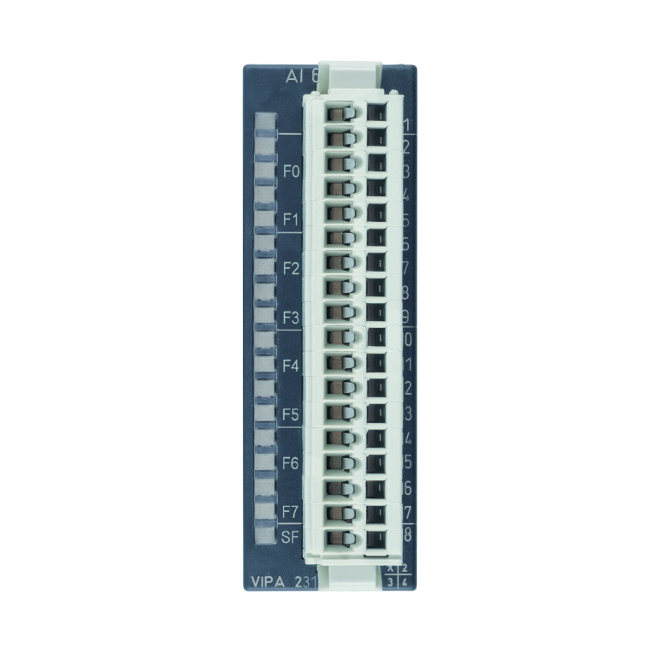

231-1BF00 Yaskawa2311BF00

231-1BF00 - Signal modules analog | Analog input modules; Order no. : 231-1BF00; Type : SM 231; Features : 8x AI16 Bit (2-Leiter)4x 16 Bit (4-Leiter)Voltage 0...60 mVResistance thermometer, thermocoupleParameterizable; Current consumption from backplane bus : 280 mA; Power loss : 1.4 W; Number of inputs : 8; Cable length, shielded : 200 m; Voltage inputs : Min. input resistance (voltage range) : 2 MΩ; Input voltage ranges : 0 mV ... +60 mV; Basic error limit voltage ranges : +/-0.1%; Destruction limit voltage : max. 15V; Resistance thermometer inputs : Resistance thermometer ranges : Pt100; Basic error limit thermoresistor ranges : ±0.15% (2-wire) ±0.15% (4-wire); Destruction limit resistance thermometer inputs : max. 15V; Thermocouple inputs : Thermocouple ranges : type Jtype Ktype T; Basic error limit thermoelement ranges : ±0.1% (Compensation external) ±1.0% (internal); Destruction limit thermocouple inputs : max. 15V; Programmable temperature compensation : External temperature compensation : Internal temperature compensation : Temperature error internal compensation : 4 K; Resolution in bit : 16; Measurement principle : Sigma-Delta; Basic conversion time : 6.75 ms ... 268 ms; Noise suppression for frequency : 50 Hz and 60 Hz; Initial data size : 16 Byte; Status display : none; Interrupts : yes; Process alarm : no; Diagnostic interrupt : yes, parameterizable; Diagnostic functions : yes; Diagnostics information read-out : possible; Supply voltage display : none; Group error display : red SF LED; Channel error display : red LED per channel; Between channels and backplane bus : Max. potential difference between inputs (Ucm) : DC 15 V; Max. potential difference between inputs and Mintern (Uiso) : DC 75 V/ AC 15 V; Insulation tested with : DC 500 V; Input bytes : 16; Output bytes : 0; Parameter bytes : 12; Diagnostic bytes : 12; Material : PPE / PA 6.6; Mounting : Profile rail 35 mm; Dimensions (WxHxD) : 25.4 mm x 76 mm x 88 mm; Net weight : 90 g; Operating temperature : 0 °C to 60 °C; Storage temperature : -25 °C to 70 °C; UL certification : yes
