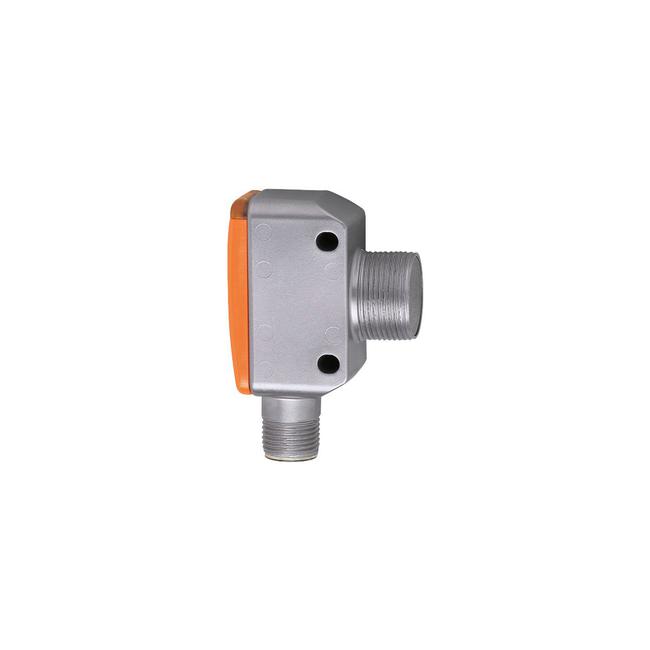

OGS380 ifm ⍾ OGS-OOKG/US/V4A/CUBE

Through-beam sensor transmitter; Operating voltage [V] : 10...30 DC; Rated insulation voltage [V] : 32; Protection class : III; Reverse polarity protection : yes; Max. power-on delay time [ms] : 300; Type of light : red light; Wave length [nm] : 662; Range [m] : 15; Max. light spot diameter [mm] : 800; Light spot dimensions refer to : at maximum range; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Device Identification, Device Diagnosis; SIO mode : no; Required master port type : A; Min. process cycle time [ms] : 2.5; IO-Link process data (cyclical) : function: bit length | device status: 4; IO-Link functions (acyclical) : application specific tag; operating hours counter; Supported DeviceIDs : Type of operation: DeviceID | Default: 1135; Note : For further information please see the IODD PDF file under "Downloads"; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...80; Housing : rectangular; Thread designation : M18 x 1; Materials : 1.4542 (17-4 PH / 630); PEI; Lens material : PEI; Items supplied : lock nut: 1 x

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

17 mA

Suministro de voltaje

24 V

Mostrar

operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

78 g

Dimensiones

M18 x 1 mm
