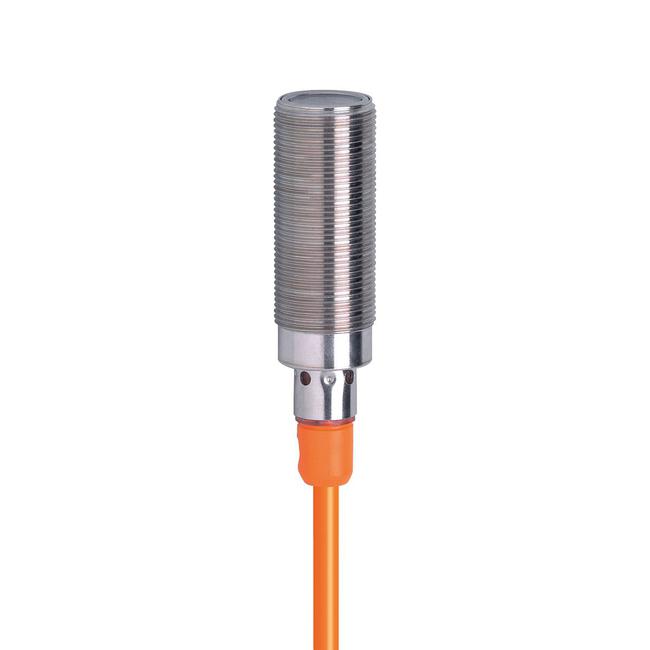

OGS301 ifm ⍾ OGS-OOKG/6M

Through-beam sensor transmitter; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Transmitter / receiver : transmitter; Range [m] : < 20; Range adjustable : no; Max. light spot diameter [mm] : 800; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : housing: stainless steel (1.4404 / 316L); Sealing: EPDM; Lens material : PMMA; Items supplied : lock nuts: 2 x

Tipo

Fotocélulas

Conexión

Cable: 6 m, PVC; 3 x 0.34 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

15 mA

Suministro de voltaje

24 V

Mostrar

operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

245.8 g

Dimensiones

M18 x 1 / L = 68.6 mm
