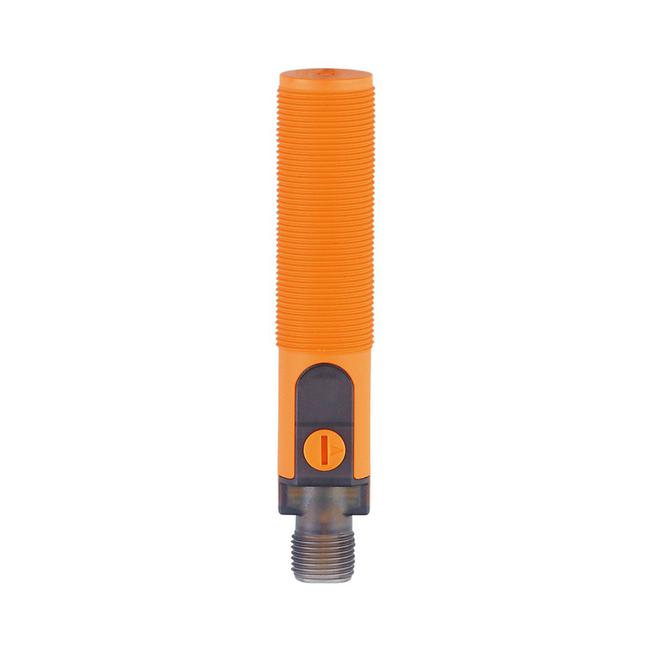

KG5306 ifm ⍾ KG-3150NANKG/SL/1P/US/IO

Capacitive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 30; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 0.5...30; Sensing range adjustable : yes; Factory setting sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Process Data Variable; Device Identification; SIO mode : yes; Required master port type : A; Min. process cycle time [ms] : 20; IO-Link functions (acyclical) : application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : PBT; PC; POM; Tightening torque [Nm] : 8; Items supplied : lock nuts: 2

Tipo

Detectores capacitivos

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 22 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65; IP 67; IP 69K

Peso

26.4 g

Dimensiones

M18 x 1 / L = 92.5 mm
