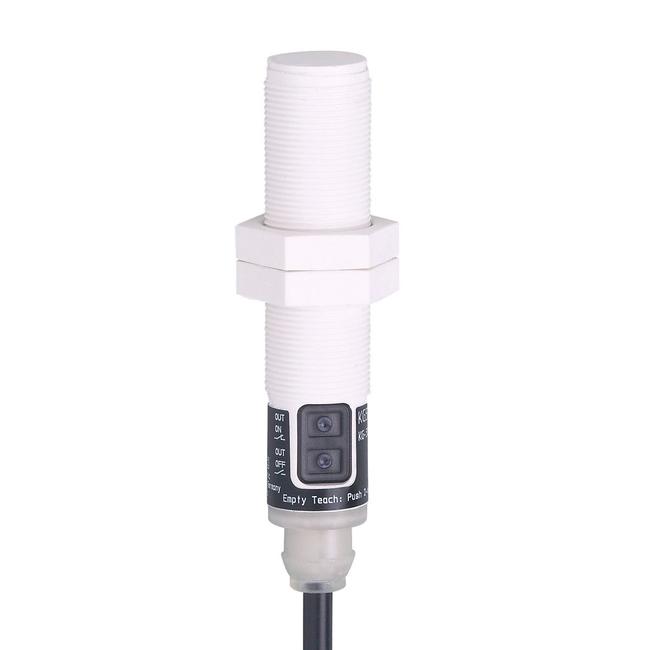

KG5070 ifm ⍾ KG-3080NFPKGS2T/10M

Capacitive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Measuring principle : capacitive; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 10; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 8; Real sensing range Sr [mm] : 8 ± 10 %; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.1; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -20...20; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U; Teach function : yes; Electronic lock : yes; Items supplied : lock nuts: 2

Tipo

Detectores capacitivos

Conexión

Cable: 10 m, PVC; conduit attachment; 3 x 0.34 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED ring, yellow cable entry lights translucently | operation: 1 x LED, green

Grado de protección

IP 65; IP 67

Peso

375.2 g

Dimensiones

M18 x 1 / L = 77 mm
