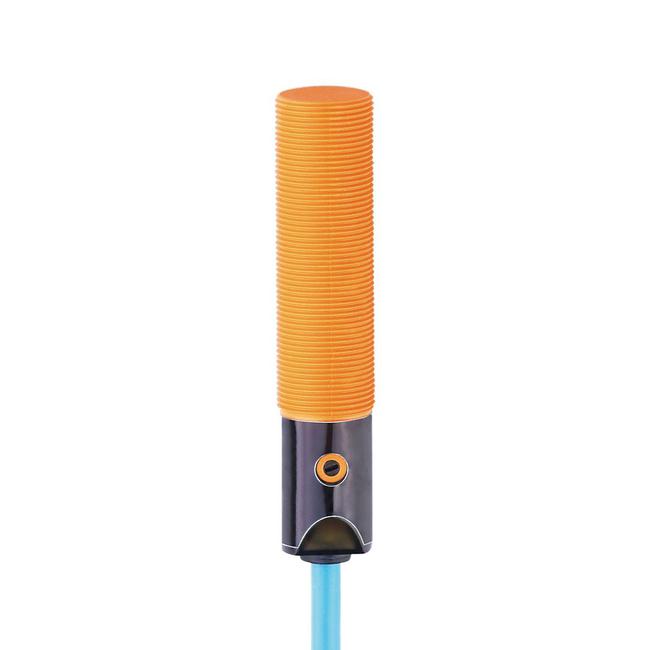

KG5079 ifm ⍾ KG-2080-N/6M/1D/1G

Capacitive NAMUR sensor; Connection to switching amplifiers : yes; Switching amplifiers : connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW; Nominal voltage DC [V] : 8.2; (1kΩ); Supply voltage DC [V] : 7.5...15; Protection class : II; Electrical design : NAMUR; Output function : normally closed; Switching frequency DC [Hz] : 4; Sensing range [mm] : 8; Sensing range adjustable : yes; Factory setting sensing range [mm] : 8; Real sensing range Sr [mm] : 8 ± 10 %; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -20...60; Max. internal capacitance [nF] : 11.5; Max. internal inductance [µH] : 3; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : PBT; Items supplied : lock nuts: 2

Tipo

Detectores capacitivos

Conexión

Cable: 6 m, PVC; 2 x 0.5 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 1; (disabled; conductive: > 2,2) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

320 g

Dimensiones

M18 x 1 / L = 84 mm
