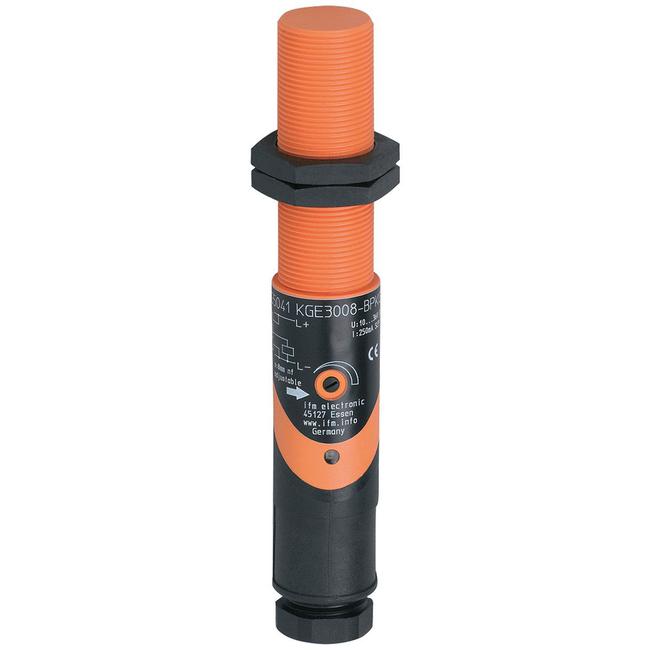

KG5041 ifm ⍾ KGE3008-BPKG/NI

Capacitive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Measuring principle : capacitive; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 50; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 8; Sensing range adjustable : yes; Factory setting sensing range [mm] : 8; Real sensing range Sr [mm] : 8 ± 10 %; Operating distance [mm] : 0...6.5; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : PBT; PC; Items supplied : lock nuts: 2

Tipo

Detectores capacitivos

Conexión

terminals: ...2.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 10 (24 V) / < 15 (36 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65

Peso

81.5 g

Dimensiones

M18 x 1 / L = 110 mm
