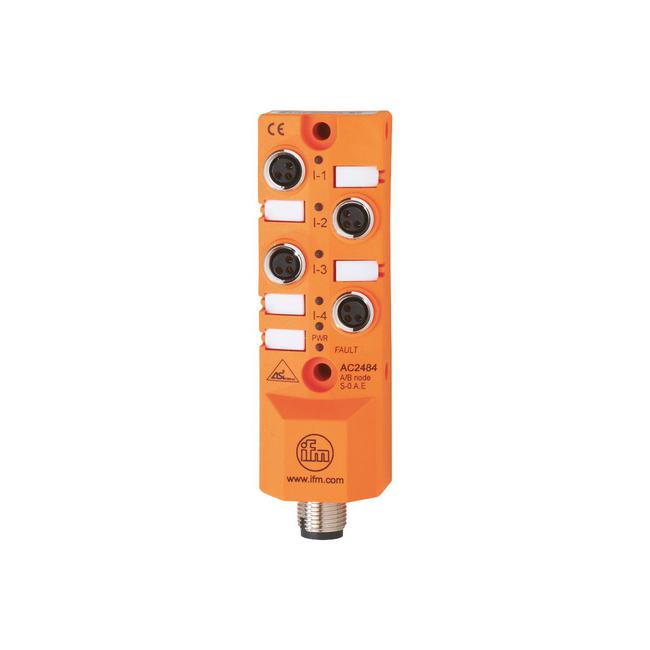

AC2484 ifm ⍾ CompactM8 4DI

AS-Interface CompactLine module; Max. current consumption from AS-i [mA] : 230; Number of digital inputs : 4; Input circuit of digital inputs : PNP; (type 2 according to IEC 61131-2); Sensor supply of the inputs : AS-i; Voltage supply [V] : 18...30; (DC); Max. total current rating of inputs [mA] : 180; Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...60; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Type of mounting : backplane mounting; Materials : PBT; Module connection : M12; Items supplied : Label tags | Protective caps: 2; Accessories (optional) : Protective cap: M8, E73005 | Flat cable insulation displacement connector: 1 m, round cable, E70583 | Flat cable insulation displacement connector: M12, E70096 | DIN rail adapter:, E73006; Connector: 1 x M12; Connector: 4 x M8

Tipo

Gama completa

Conexión

Connector: M12

Número de entradas/salidas

Number of digital inputs: 4

Consumo actual

< 160 mA

Suministro de voltaje

18...30; (DC) V

Mostrar

switching status: LED, yellow I1...I4 | operation: LED, green AS-i | errors: LED, red

Grado de protección

IP 65; IP 67; IP 68

Peso

110.5 g

Dimensiones

90.5 x 30 x 23.5 mm
