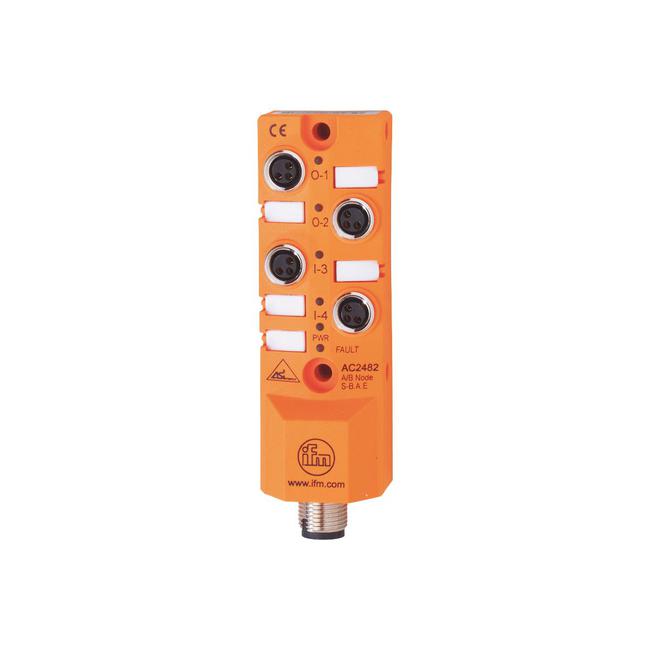

AC2482 ifm ⍾ CompactM8 2DI 2DO

AS-Interface CompactLine module; Max. current consumption from AS-i [mA] : 230; Integrated watchdog : yes; Number of digital inputs : 2; Input circuit of digital inputs : PNP; (type 2 according to IEC 61131-2); Sensor supply of the inputs : AS-i; Voltage supply [V] : 18...30; (DC); Max. total current rating of inputs [mA] : 180; (current load for all inputs and outputs: 180 mA); Min. switching level high signal [V] : 11; Digital inputs protected against short circuits : yes; Number of digital outputs : 2; Voltage range DC [V] : 18...30; Max. current load per output [mA] : 180; (current load for all inputs and outputs: 180 mA); Short-circuit proof : yes; Electrically separated : no; Actuator supply outputs : AS-i; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...60; Max. relative air humidity [%] : 90; (non condensing); Max. height above sea level [m] : 2000; Type of mounting : backplane mounting; Materials : PBT; Module connection : M12; Items supplied : Label tags | Protective caps: 2; Accessories (optional) : Protective cap: M8, E73005 | Flat cable insulation displacement connector: 1 m, round cable, E70582 | Flat cable insulation displacement connector: M12, E70096 | DIN rail adapter:, E73006; Connector: 1 x M12; Connector: 2 x M8

Tipo

Gama completa

Conexión

Connector: M12

Número de entradas/salidas

Number of digital inputs: 2; Number of digital outputs: 2

Consumo actual

< 160 mA

Suministro de voltaje

18...30; (DC) V

Mostrar

switching status: LED, yellow I1...I2, O1...O2 | operation: LED, green AS-i | errors: LED, red

Grado de protección

IP 65; IP 67; IP 68

Peso

111 g

Dimensiones

90.5 x 30 x 23.5 mm
