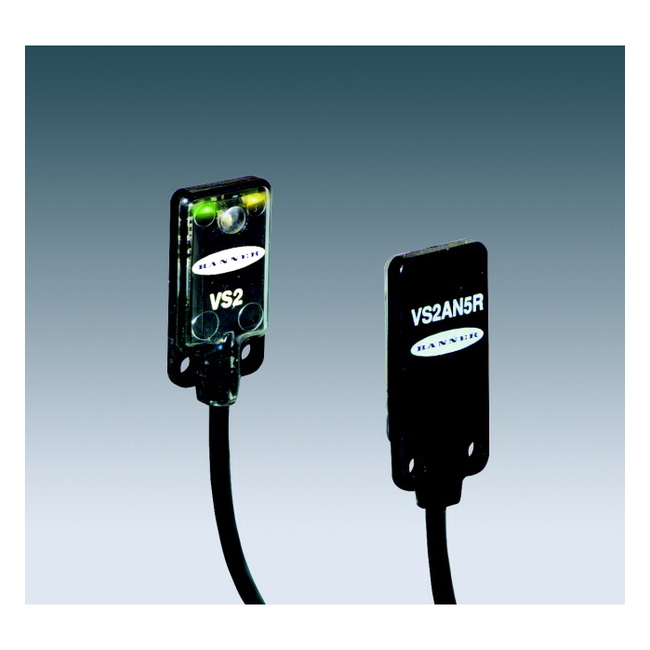

VS2RP5CV15 BANNER ⍾ 61747

Ultradünner Miniatursensor der Bauform VS2; VS2 Series: Convergent Focal Point: 15 mm; Input: 10 to 30V dc Output: PNP Dark Operate 2 m (6.5 ft.) Cable; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 660; Delay at Power-up (ms) : 100; Repeatability (µs) : 100; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 80% @ 50°C; Lens Material : MABS; Adjustments : N/A; Barrel Diameter (mm) : N/A; Indicator : LEDs

Typ

VS2

Linsenmaterial

MABS

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
