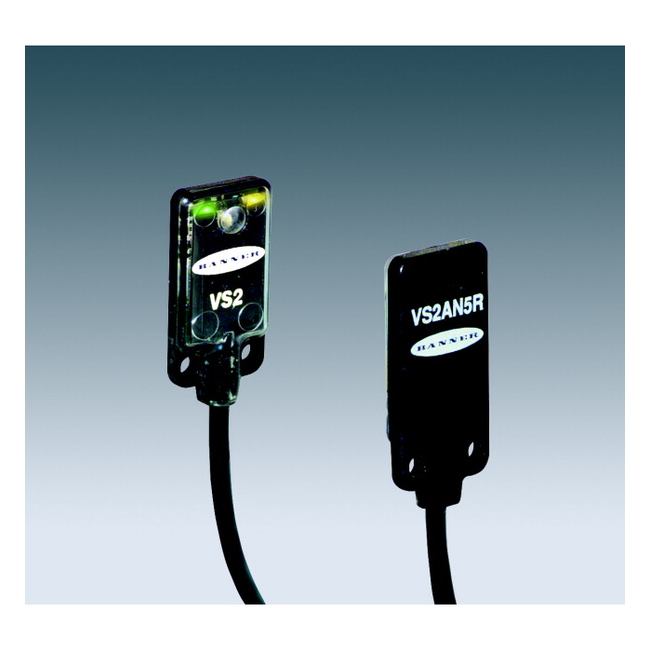

VS2RN5RQ BANNER ⍾ 63098

Ultradünner Miniatursensor der Bauform VS2; VS2 Series: Receiver Range 1.2m max; Input: 12-24V dc Output: NPN Dark Operate Pico M8 3-pin Pigtail QD; Sensing Beam : Visible Red or IR; Power : DC; Sensing Mode (General) : Opposed; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 3000; Power Supply/Supply Voltage : 10-30 V dc; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 940; Delay at Power-up (ms) : 100; Repeatability (µs) : 100; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 80% @ 50°C; Lens Material : MABS; Adjustments : N/A; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Quick Disconnect : Yes

Typ

VS2

Linsenmaterial

MABS

Sensorstrahl

Visible Red or IR

Connection

Pigtail QD

Typische Reaktionszeit

100 ms

Stromversorgungstyp

DC

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
