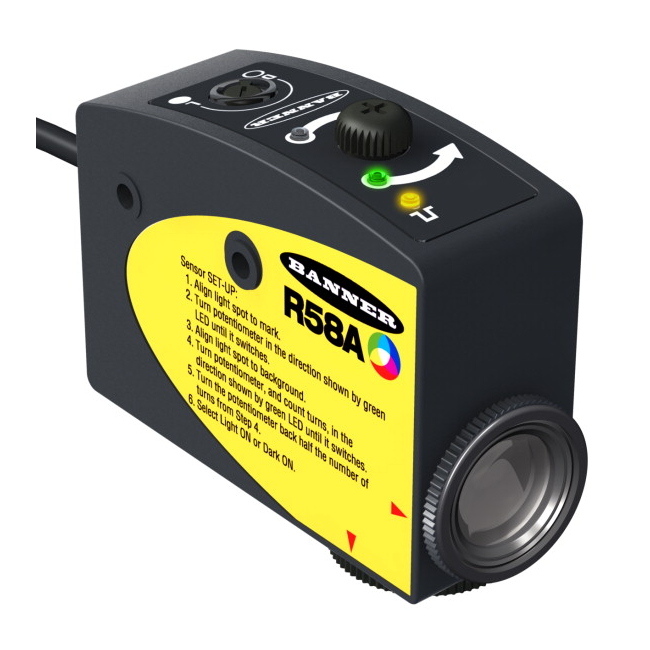

R58ACG1Q BANNER ⍾ 10219

Registermarkensensoren: Bauform R58; R58A Register Mark Sensor Input; 10-30 V dc Output: Bipolar; 1 NPN; 1 PNP Green Parallel Sensing Beam Euro 5-pin Pigtail; Cable Length (m) : 0.15; Primary Housing Material : Zinc Alloy Die-Cast; Adjustments : Potentiometer; Sensing Beam : Visible Green LED; Connection : Pigtail QD; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Sensing Beam Wavelength : 525; Number of Pins : 4; LED Orientation : Parallel to sensor length; Indicator : LEDs; Operation : Light/Dark Operate; Output response time (ms) : 0.05; Repeatability (µs) : 15; Lens Material : Acrylic; IP Rating : IP67; NEMA Rating : N/A; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Delay at Power-up (ms) : 100; Beam Spot Size : 1.2 x 3.8 mm at 10 mm; Feature: Quick Disconnect : Yes; Application: Registration Mark : Yes

Typ

Registermarkensensoren: Bauform R58

Linsenmaterial

Acrylic

Connection

Pigtail QD

Typische Reaktionszeit

100 ms

Stromversorgung

10-30 V dc

Indikator

LEDs

Schutzart

IP67
