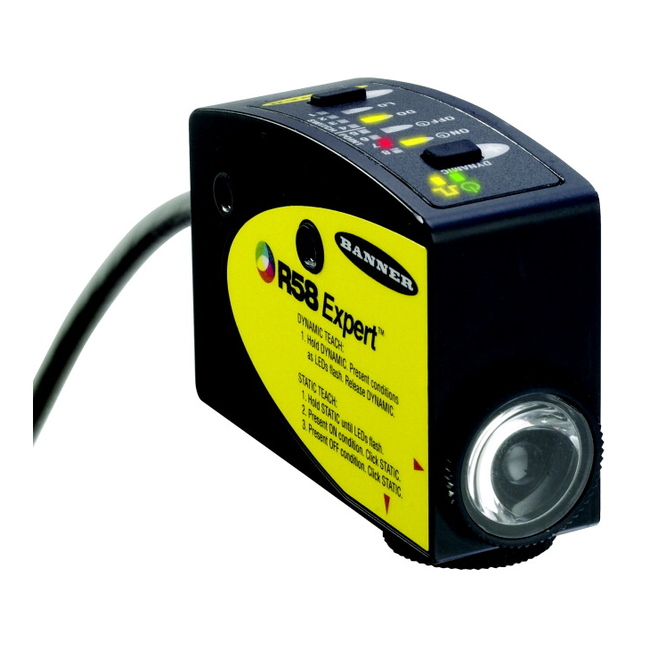

R58ECRGB1Q BANNER ⍾ 75040

Registermarkensensoren: Bauform R58; R58 EXPERT Register Mark Sensor Input; 10-30 V dc Output: Bipolar; 1 NPN; 1 PNP Parallel Sensing Beam Euro 5-pin Pigtail; Cable Length (m) : 0.15; Primary Housing Material : Zinc Alloy Die-Cast; Adjustments : Teach Button; Sensing Beam : Red/Green/Blue LED; Connection : Pigtail QD; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : Red: 636 nm; Green: 525 nm; Blue: 472 nm; LED Orientation : Parallel to sensor length; Indicator : Bargraph; Operation : Light/Dark Operate; Output response time (ms) : 0.05; Repeatability (µs) : 15; Lens Material : Acrylic; IP Rating : IP67; NEMA Rating : N/A; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Delay at Power-up (ms) : 1000; Beam Spot Size : 1.2 x 3.8 mm at 10 mm; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Application: Registration Mark : Yes

Typ

Registermarkensensoren: Bauform R58

Linsenmaterial

Acrylic

Connection

Pigtail QD

Typische Reaktionszeit

1000 ms

Stromversorgung

10-30 V dc

Indikator

Bargraph

Schutzart

IP67
