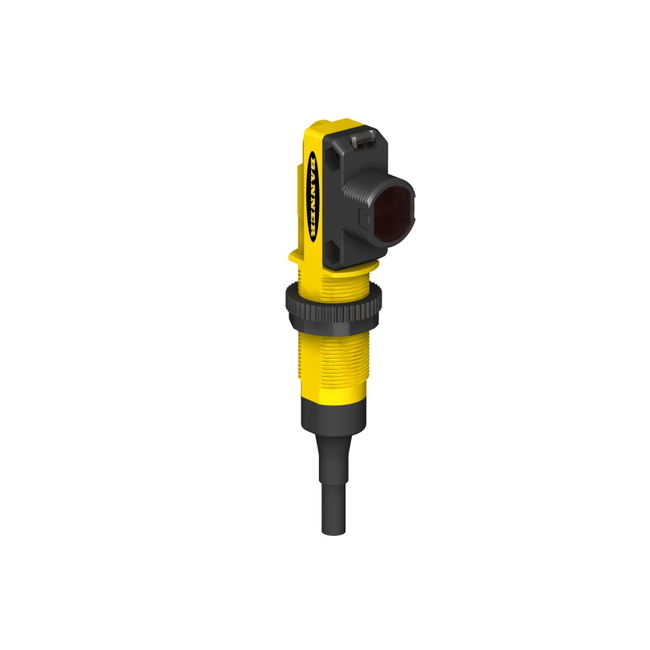

QS18WE BANNER ⍾ 79603

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM QS18 Universal Voltage Emitter Range: 20 m; Input: Output: Not Applicable 2m Cable; Sensing Beam : Infrared LED; Power : AC/DC Universal; Sensing Mode (General) : Opposed; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Max Sensing Distance (mm) : 20000; Outputs : N/A; Power Supply/Supply Voltage : 20-270 V ac/dc; Quick Disconnect Type : No QD; Operation : N/A; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 70 if < 140V, 55 if > 140V; Output response time (ms) : 16.6; Delay at Power-up (ms) : 100ms dc, 300ms ac; Repeatability (µs) : 1500; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Lens Material : PMMA; Adjustments : N/A; Indicator : LEDs

Typ

QS18

Linsenmaterial

PMMA

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100ms dc, 300ms ac ms

Stromversorgungstyp

AC/DC Universal

Stromversorgung

20-270 V ac/dc

Indikator

LEDs

Schutzart

IP67
