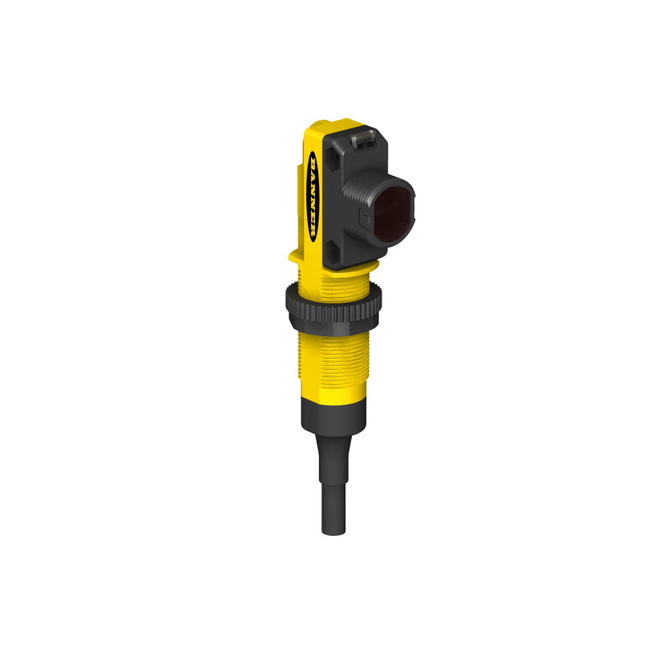

QS18WE W/30 BANNER ⍾ 79569

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM QS18 Series: Emitter Range: 20 m; Input: 20-270 V ac/dc Output: N/A 9 m (30 ft) Cable; Sensing Beam : Infrared LED; Power : AC/DC Universal; Sensing Mode (General) : Opposed; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 70 if < 140V, 55 if > 140V; Output response time (ms) : 16.6; Delay at Power-up (ms) : 100ms dc, 300ms ac; Repeatability (µs) : 1500; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 95% @ 55°C; Lens Material : PMMA; Indicator : LEDs

Typ

QS18

Linsenmaterial

PMMA

Sensorstrahl

Infrared LED

Connection

Cable

Typische Reaktionszeit

100ms dc, 300ms ac ms

Stromversorgungstyp

AC/DC Universal

Stromversorgung

20-270 V ac/dc

Indikator

LEDs

Schutzart

IP67
