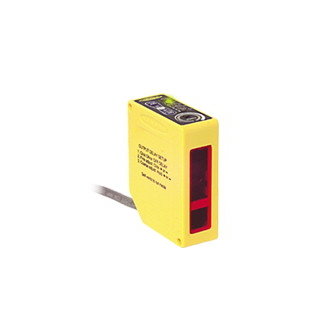

Q60VR3AFV1000 BANNER ⍾ 70094

Sensoren mit einstellbarer Hintergrundausblendung und 2 m Reichweite - Bauform Q60; Q60 Series: Adjust-Field Visable Red Univer Volt Range: 200-1000 m; Input: 12-250V dc or 24-250V ac Output: Electrocromechanical Relay (SPDT) 2m (6.5 ft) Cable; Sensing Beam : Visible Red LED; Power : AC/DC Universal; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Outputs : SPDT e/m Relay; Power Supply/Supply Voltage : 12-250 V dc or 24-250 V ac; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 15; Sensing Beam Wavelength : 665; Delay at Power-up (ms) : 150; Repeatability (µs) : 500; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Screw Adjustment; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Timing (Hold/Delay) : Yes

Typ

Q60

Linsenmaterial

Acrylic

Sensorstrahl

Visible Red LED

Connection

Cable

Typische Reaktionszeit

150 ms

Stromversorgungstyp

AC/DC Universal

Stromversorgung

12-250 V dc or 24-250 V ac

Indikator

LEDs

Schutzart

IP67
