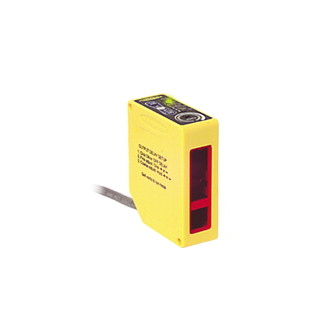

Q60VR3AF2000Q1 BANNER ⍾ 63005

Sensoren mit einstellbarer Hintergrundausblendung und 2 m Reichweite - Bauform Q60; Q60 Series: Adjustable-Field Infrared Univrs Volt Range: 200-2000 mm; Input: 12-250V dc or 24-250Vac Output: Electromechanical Relay (SPST) Micro-Style Quick-Disconnect Connector; Sensing Beam : Infrared LED; Power : AC/DC Universal; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Outputs : SPST e/m Relay; Power Supply/Supply Voltage : 12-250 V dc or 24-250 V ac; Connection : Integral QD; Quick Disconnect Type : 1/2 in. (Micro); Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 15; Delay at Power-up (ms) : 150; Repeatability (µs) : 500; NEMA Rating : NEMA 6; IP Rating : IP67; Max Op. Relative Humidity [%] : 90% @ 50°C; Lens Material : Acrylic; Adjustments : Screw Adjustment; Barrel Diameter (mm) : N/A; Indicator : LEDs; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Typ

Q60

Linsenmaterial

Acrylic

Sensorstrahl

Infrared LED

Connection

Integral QD

Typische Reaktionszeit

150 ms

Stromversorgungstyp

AC/DC Universal

Stromversorgung

12-250 V dc or 24-250 V ac

Indikator

LEDs

Schutzart

IP67
