7MF1565-3CB00-3GA1-Z C11 SIEMENS ⍾ 7MF15653CB003GA1ZC11

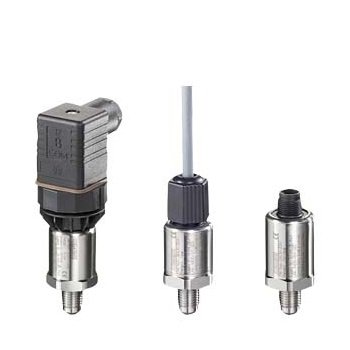

Pressure transmitter SITRANS P200 for pressure for low pressure applications. Characteristic curve deviation typ. 0.25 percent with free measuring range less than 0,5%. Material of wetted parts: stainless steel and sealing material. Material of non-wetted parts: stainless steel Measuring range for gauge: 0 to 16 bar, Overload- pressure 40 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: Connection via mounted cable, 2m (not with explosion protection) Process connection: 1/2"-14 NPT male Sealing material between sensor and housing: Viton (FPM, Standard) Standard version Quality inspection certificate (Factory calibration) to IEC 60770-2 (including)
- Typ
- Przetworniki ciśnienia SITRANS P200
- Kod taryfy celnej
- 90262020
- Kraj pochodzenia
- CH
- Waga
- 0.200
