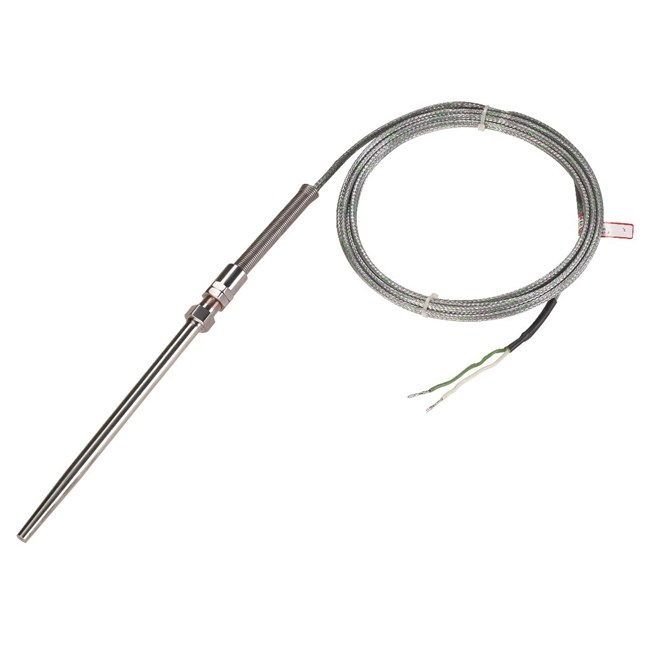

087U4202 Danfoss

Type Code: MBT 5111; Weight: 0.565 Kg; Ambient temp. max.: 200 °C; Ambient temp. max.: 392 °F; Cable length: 669,29 in; Cable length: 17,00 m; Cable temp. range: -60 - 260 °C; Cable temp. range: -76 - 500 °F; Cable type: PFA TC, screened; Conn. mat.: Brass; Conn. std.: ANSI/ASME B1.20; Conn. type: NPT; EAN no.: 5702428899550; Electr. conn. size: 4 wire; Enclosure rating: IP65; Ext. length: 14,57 in; Ext. length: 370 mm; Insert length: 5,12 in; Insert length: 130 mm; Insert. type: Variable; Output sign.: mV; Pack format: Multi pack; Process conn. Male/Female: Male; Process conn. mat.: Brass; Process conn. size: 1/4-18; Process conn. std.: ANSI/ASME B1.20.1; Process conn. type: NPT; Prod. group: Sensors; Prod. name: Temperature sensor; Prot. tube diam. (ø): 0,24 in; Prot. tube diam. (ø): 6,0 mm; Prot. tube mat.: AISI 316 Ti; Pack qty.: 8 PC; Sensor element std.: EN 60584-2; Sensor element tol.: Class 2; Sensor Insert: fixed; Temp. range: -50 - 800 °C; Temp. range: -58 - 1472 °F; Thermocouple: 2 x NiCr-Ni, Type K; Thermocouple design std.: EN 61515; Thermocouple tol.: EN 60584-2 Class 2; Type designation: 00 MBT 5111-1100-0370-111-1; Type designation: 1700-000-0000.

Typ

MBT 5111, Czujniki temperatury spalin
