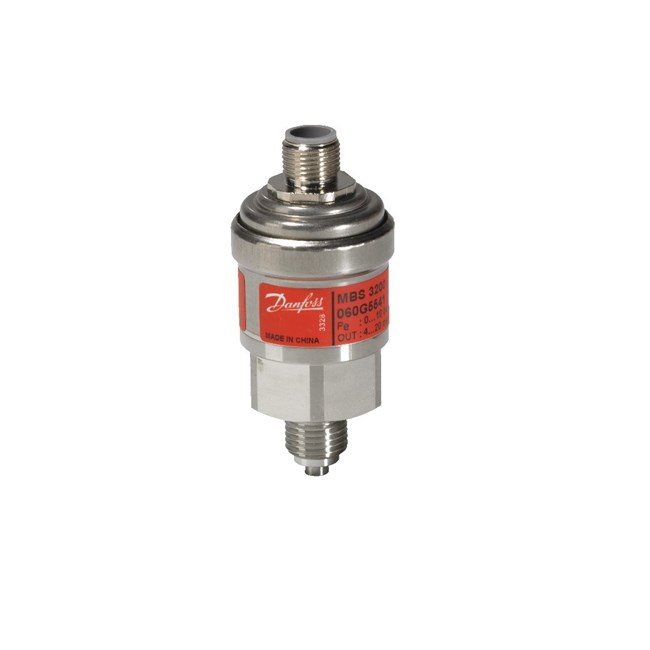

060G6452 Danfoss

Type Code: MBS 3200; Weight: 0.138 Kg; - common: PIN 3; + output: PIN 4; + supply: PIN 1; Accuracy (max.) ±FS: 1,00 %; Accuracy (typ.) ±FS: 0,5 %; Adj. zero point/span: No; Ambient temp.: -25 - 90 °C; Ambient temp.: -13 - 194 °F; Compensated temp. range: 0 - 100 °C; Compensated temp. range: 32 - 212 °F; EAN no.: 5702428927840; Electr. conn. type: M12 x 1, 4 pin, EN 60947-5-2, Male; Enclosure rating: IP67; Flush diaphr.: No; Intrins. safe: No; Medium temp. range: -40 - 125 °C; Medium temp. range: -40 - 257 °F; Non-linearity BFSL ±FS [%]: 0,20 %; Output sign. type: 1 - 6 V; Overload press. max.: 156,0 bar; Overload press. max.: 2.262 psi; Pack format: Multi pack; Pressure conn. HEX: 27,0; Pressure conn. std.: EN 837; Pressure conn. type: G - 1/4 Male; Pressure range: -1,0000 - 25,0000 bar; Press. unit ref.: Gauge (relative); Prod. group: Sensors; Prod. name: Pressure transmitter; Pulse-snubber: No; Pack qty.: 20 PC; Response time max.: 4 ms; Spec. key: MBS 3200-D314-E3AB04-0; Supply volt.: 10,00 - 30,00 V.

Typ

Przetworniki ciśnienia MBS 3200
