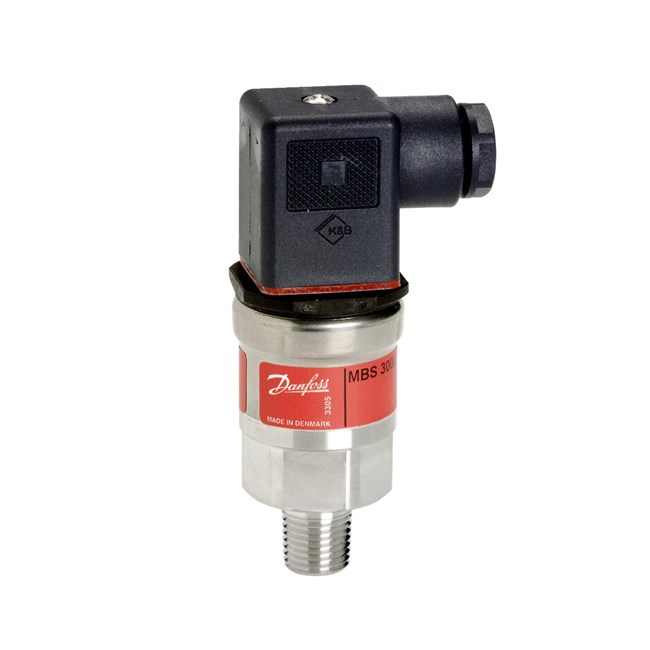

060G3744 Danfoss

Type Code: MBS 3000; Weight: 0.129 Kg; - common: PIN 2; + supply: PIN 1; Accuracy (max.) ±FS: 1,00 %; Accuracy (typ.) ±FS: 0,5 %; Adj. zero point/span: No; Ambient temp.: -40 - 85 °C; Ambient temp.: -40 - 185 °F; Compensated temp. range: 0 - 80 °C; Compensated temp. range: 32 - 176 °F; EAN no.: 5702423195893; Electr. conn. type: DIN-plug, 4 pin, EN 175301-803-A, Male; Enclosure rating: IP65; Flush diaphr.: No; Intrins. safe: No; Medium temp. range: -40 - 85 °C; Medium temp. range: -40 - 185 °F; Non-linearity BFSL ±FS [%]: 0,50 %; Output sign.: Current; Output sign. type: 4 - 20 mA; Overload press. max.: 240,0 bar; Overload press. max.: 3.481 psi; Pack format: Multi pack; Pressure conn. HEX: 27,0; Pressure conn. std.: ANSI/ASME B1.20.1; Pressure conn. type: NPT - 1/4-18 Male; Pressure range: 0,0000 - 40,0000 bar; Press. unit ref.: Gauge (relative); Prod. group: Sensors; Prod. name: Pressure transmitter; Pulse-snubber: No; Pack qty.: 20 PC; Response time max.: 4 ms; Spec. key: MBS 3000-2611-A0EC04-0; Supply volt.: 9,00 - 32,00 V.

Typ

Przetworniki ciśnienia MBS 3000
