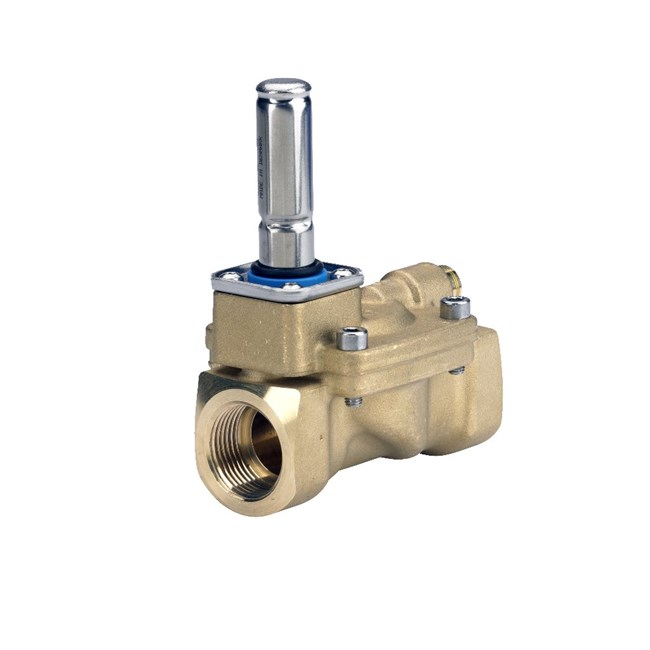

032U6551 Danfoss

Type Code: EV220B; Weight: 0.913 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 50 °C; Ambient temp. max.: 122 °F; Body mat.: Brass; Connection: NPT 3/4; Conn. Int./Ext.: Internal; Conn. std.: ANSI/ASME B1.20.1; Cv value: 9,250 gpm US; Diff. pressure: 0,3 - 9,791 bar; Diff. pressure: 4,4 - 142,0 psi; EAN no.: 5702423031399; Function: N O; Kv value: 8,000 m3/h; Max. test pressure: 20,0 bar; Max. test pressure: 290,0 psig; Max. Working Pressure: 15,5 bar; Max. Working Pressure: 225 psig; Medium temp. range: 0 - 100 °C; Medium temp. range: 32 - 212 °F; Number of ways: 2/2; Operation: Servo-operated (diaphragm); Orifice size: 20,00 mm; Orifice size: 3/4 in; Pack format: Multi pack; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 24 PC; Seal mat.: FKM; Type designation: Solenoid valve.

Typ

EV220B (seria 15-50), Zawory elektromagnetyczne 2/2-drożne z serwosterowaniem
