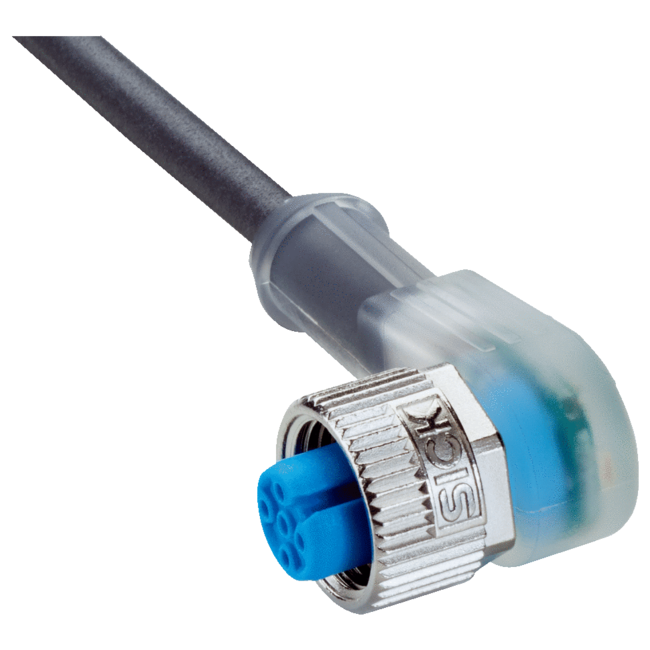

YI2A14-250UB3XLEAX SICK2095839YI2A14250UB3XLEAX

Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Connecting cables; Connection type head A: Female connector, M12, 4-pin, angled with LED, A-coded; Connection type head B: Flying leads; Locking plug connector: Screw connection; Connector material: TPU; Connector color: Transparent; Locking nut material: Zinc die-cast, nickel-plated; Seal material: FKM; Tightening torque: 0.6 Nm; Width across flats: 13; Cable: 25 m, 4-wire, PUR, halogen-free; Jacket material: PUR, halogen-free; Jacket color: Black; Cable diameter: 4.5 mm; Conductor cross-section: 0.34 mm²; Shielding: Unshielded; Bending radiusFlexible use> 10 x cable diameterStationary position> 5 x cable diameterDrag chain operation> 10 x cable diameter: Bending radius; Bending cycles: 10,000,000; Reference voltage: ≤ 24 V DC; Rated impulse voltage: 0.8 kV; Current loading: 4 A; Traversing speed: 3 m/s; Travelling distance: 10 m; Acceleration: ≤ 10 m/s²; Signal type: Sensor/actuator cable; Torsion force: 180° / 1 m; Torsion cycles: 2,000,000; Cycles per minutes: 35; Application: Zones with oils and lubricantsDrag chain operation; Note: Only suitable for PNP sensors; Authorizations: UL; UL File No.: E335179; Enclosure rating: IP65 / IP66K / IP67; Ambient operating temperatureFlexible use–25 °C ... +80 °CStationary position–40 °C ... +80 °CDrag chain operation–25 °C ... +80 °CHead–25 °C ... +85 °C: Ambient operating temperature; Contamination rating: 3; Insulation resistance: 100 MΩ; Overvoltage category: III; Specific insulation resistance: 30 mΩ; Classifications: ECl@ss 5.0: 19030312; ECl@ss 5.1.4: 19030312; ECl@ss 6.0: 27060304; ECl@ss 6.2: 27060304; ECl@ss 7.0: 27060304; ECl@ss 8.0: 27060304; ECl@ss 8.1: 27060304; ECl@ss 9.0: 27060304; ECl@ss 10.0: 27060304; ECl@ss 11.0: 27060304; ETIM 5.0: EC000830; ETIM 6.0: EC000830; ETIM 7.0: EC003249; UNSPSC 16.0901: 26121604
