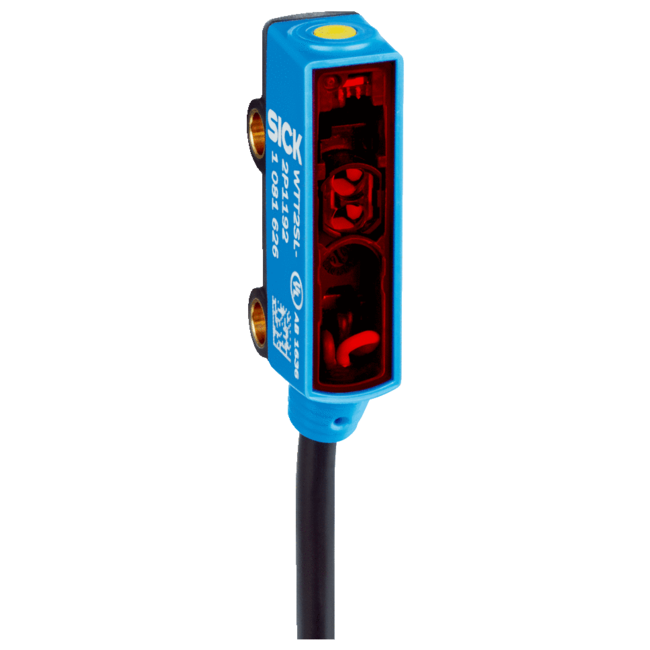

SICK WTT2SL-2P3292

WTT2SL-2P3292 SICK ⍾ 1085602 ⍾ WTT2SL2P3292

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 7.7 mm x 27.5 mm x 13.5 mm; Housing design (light emission): Rectangular; Sensing range max.: 50 mm ... 800 mm 1); Sensing range: 50 mm ... 800 mm 1); Type of light: Infrared light; Light source: Laser 2); Light spot size (distance): Ø 10 mm (300 mm); Wave length: 940 nm; Laser class: I; Adjustment: Single teach-in button 3); Special applications: Detecting small objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp 2); Current consumption: 20 mA 3); Switching output: PNP; Switching mode: Light/dark switching; Output current Imax.: < 50 mA; Response time: Typ. 90 ms 4); Switching frequency: 5 Hz 5); Analog output: -; Connection type: Cable with M8 male connector, 4-pin, 200 mm 6); Cable material: PVC; Cable diameter: Ø 3 mm; Circuit protection: A 7)B 8)D 9); Protection class: III; Housing material: Plastic, MABSABS; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –25 °C ... +50 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: E181493; Safety-related parameters: MTTFD: 925 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
